HYDRAULIC STEERING SYSTEMS
Engineered for Precision. Built for Control. Trusted at Every Horsepower.
ApexRise™ Hydraulic Steering Systems deliver smooth, predictable, high‑pressure steering performance for outboard, inboard, and stern‑drive vessels. Each system is engineered with marine‑grade materials, tight hydraulic tolerances, and helm‑to‑cylinder integration that ensures effortless control at any speed.
Whether you’re rigging a 90HP fishing boat or a 700HP offshore machine, ApexRise steering delivers the reliability, strength, and precision demanded by today’s boat builders and performance operators.
Rise above ordinary. Run ApexRise™.
Hydraulic

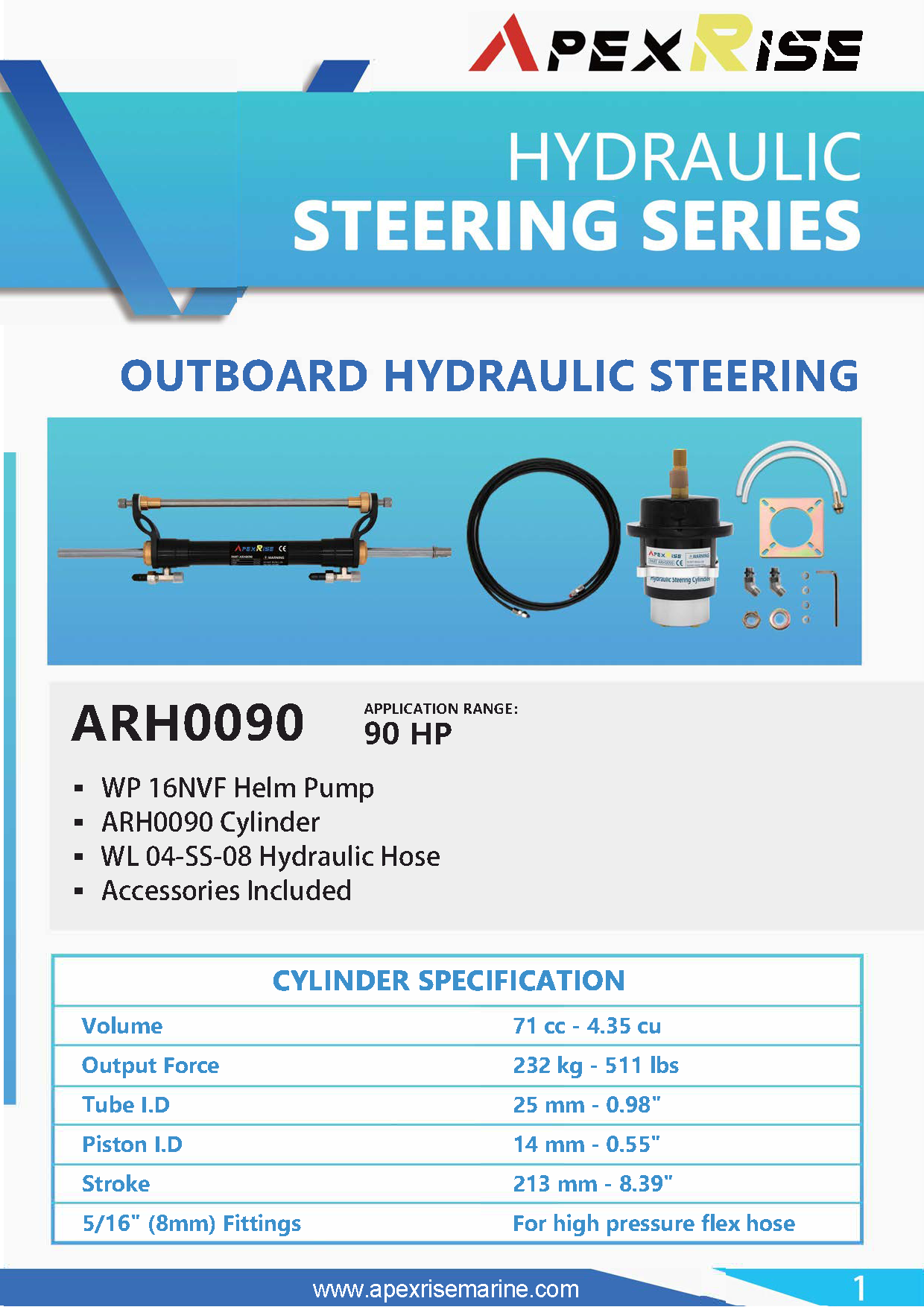

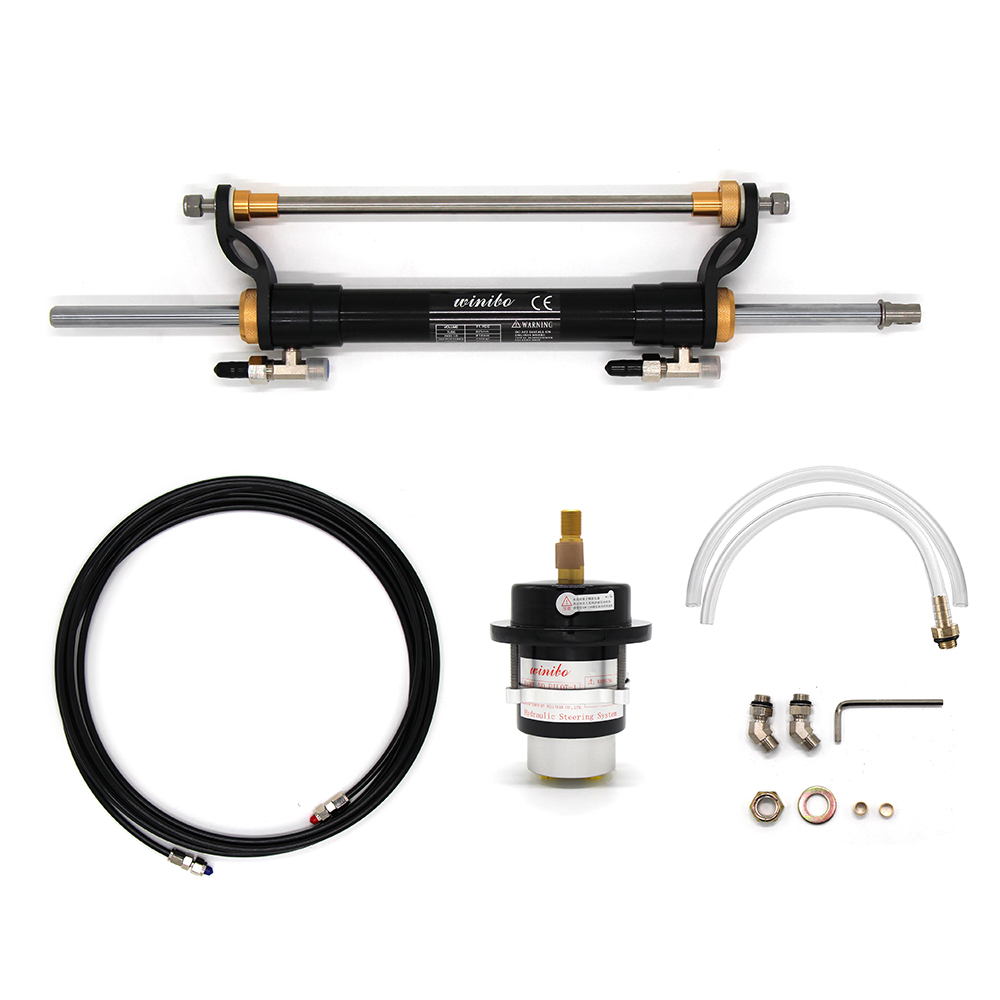

ARH0090
Outboard Hydraulic Steering System
(Up to 90HP)
Smooth, Reliable Steering for Small & Mid‑Range Outboards
The ApexRise ARH0090 system is engineered for outboards up to 90HP, delivering smooth helm response and dependable hydraulic control. Ideal for fishing boats, runabouts, and light commercial vessels.
Includes
- WP 16NVF Helm Pump
- ARH0090 Cylinder
- WL 04‑SS‑08 Hydraulic Hose
- Full accessory kit (“WP 16NVF Helm Pump… ARH0090 Cylinder… Accessories Included”
Hydraulic

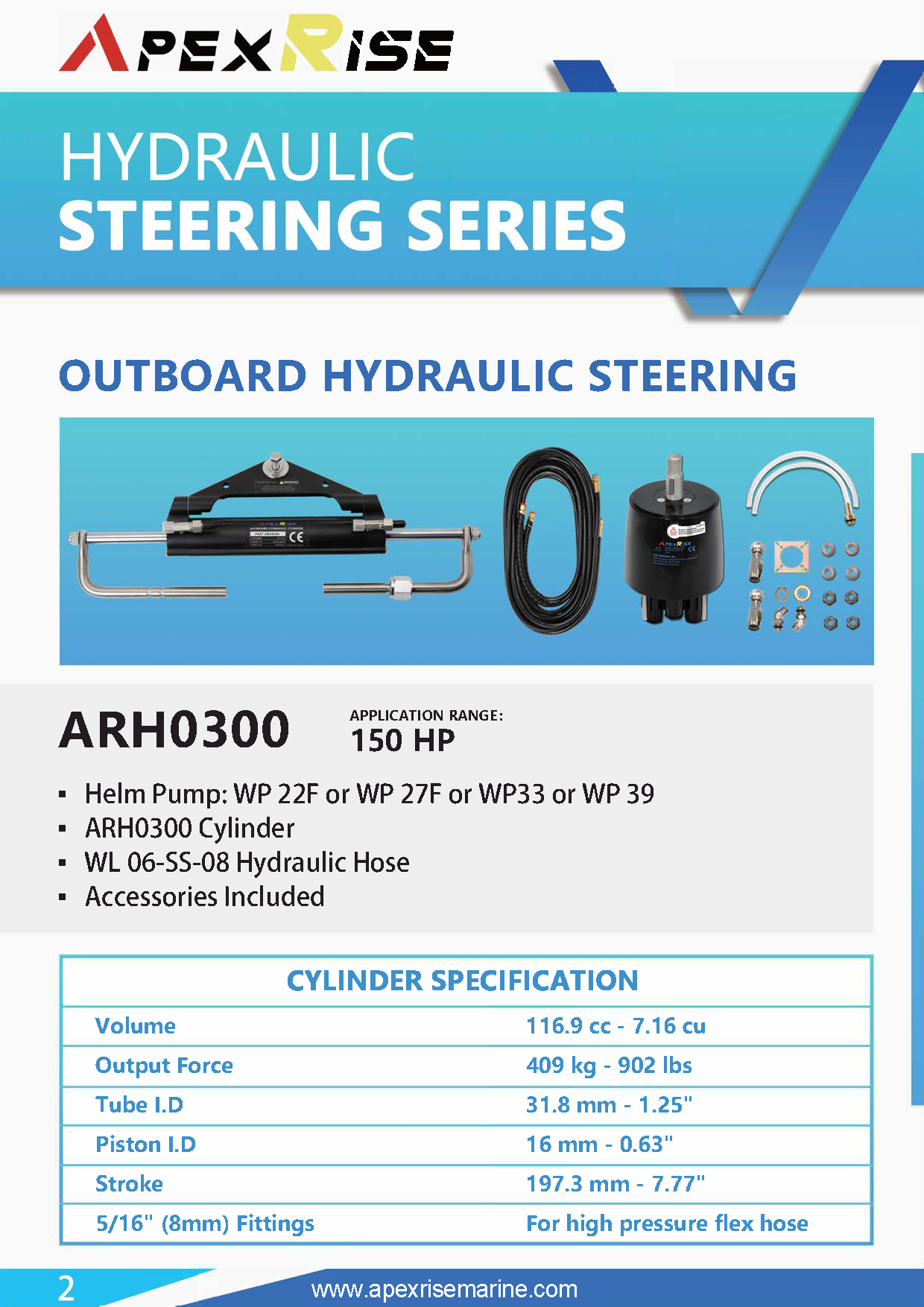

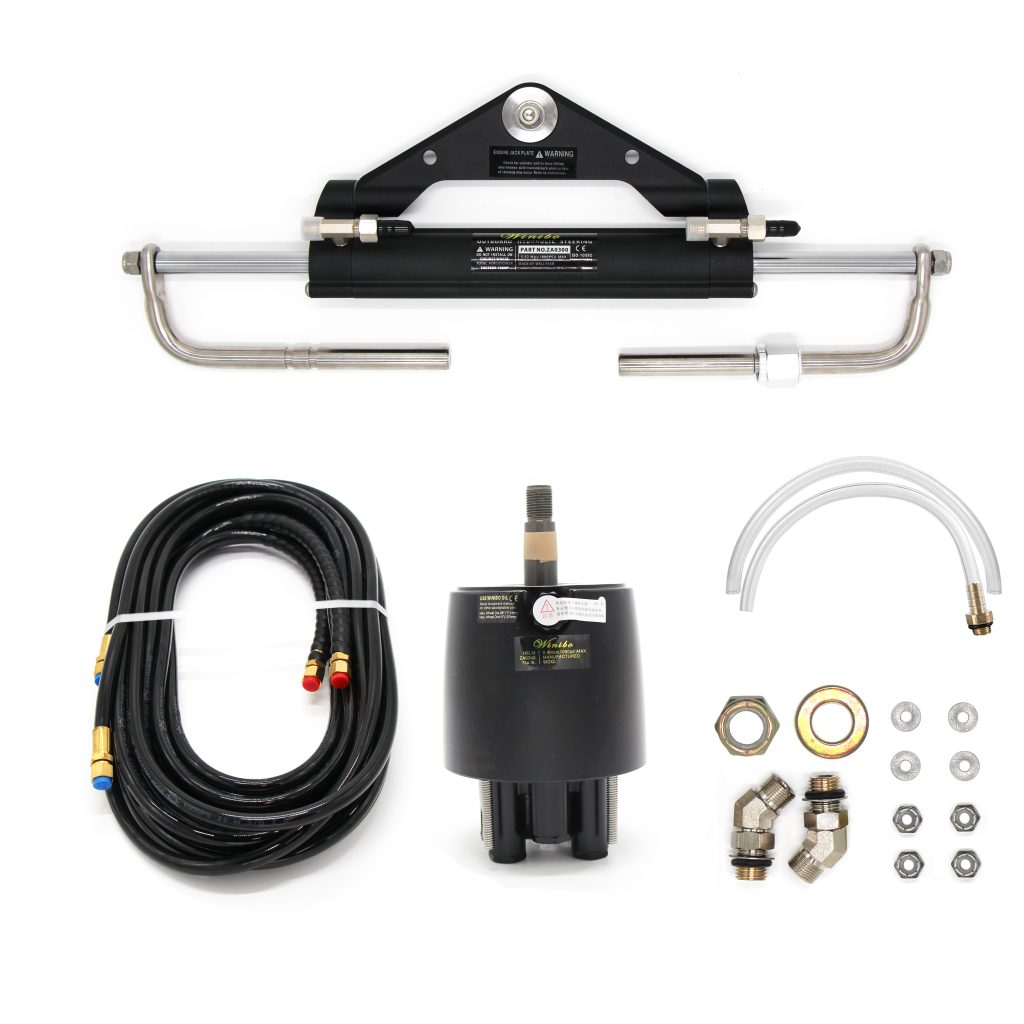

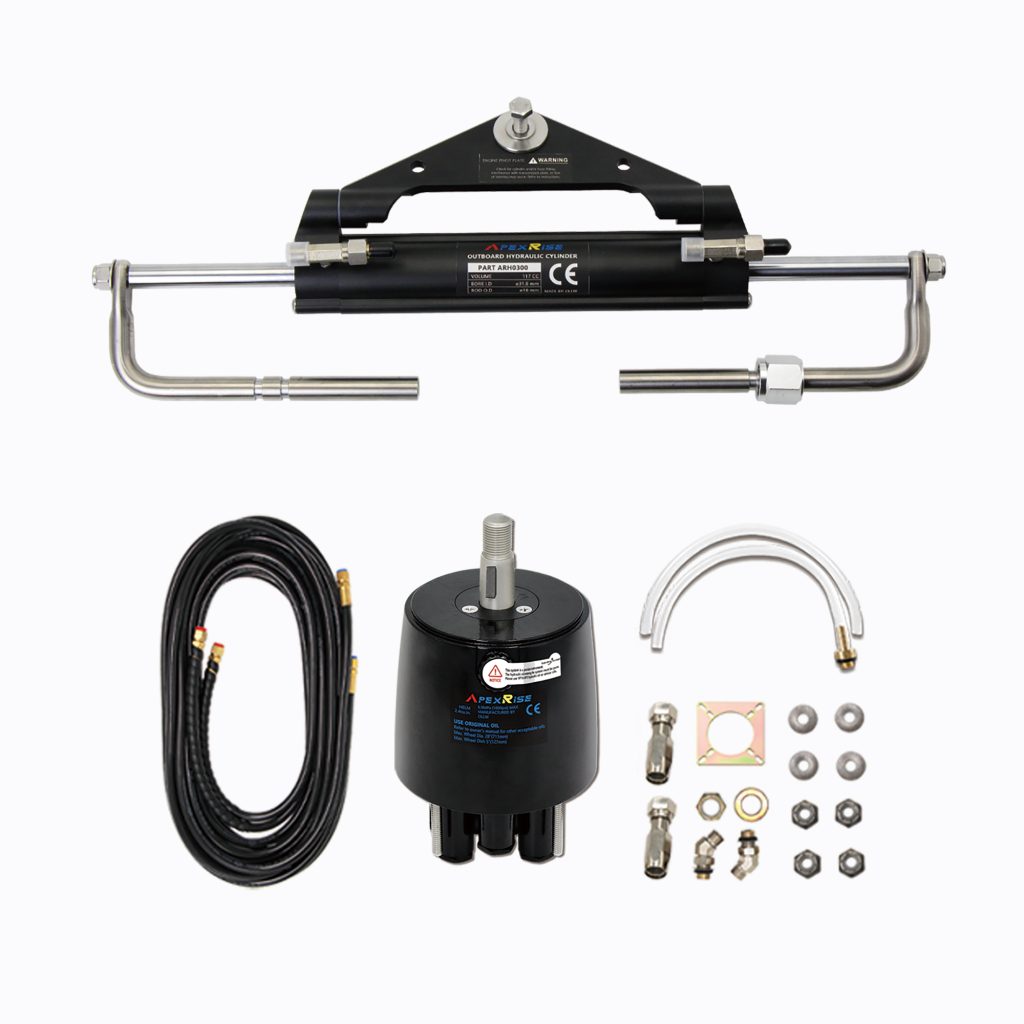

ARH0300
Outboard Hydraulic Steering System
(Up to 150HP)
Balanced, High‑Pressure Steering for Mid‑Range Outboards
The ARH0300 system is built for outboards up to 150HP, offering increased cylinder volume and output force for heavier loads and higher speeds.
Includes
- Helm Pump: WP 22F / WP 27F / WP33 / WP39
- ARH0300 Cylinder
- WL 06‑SS‑08 Hydraulic Hose
- Accessories Included
Hydraulic

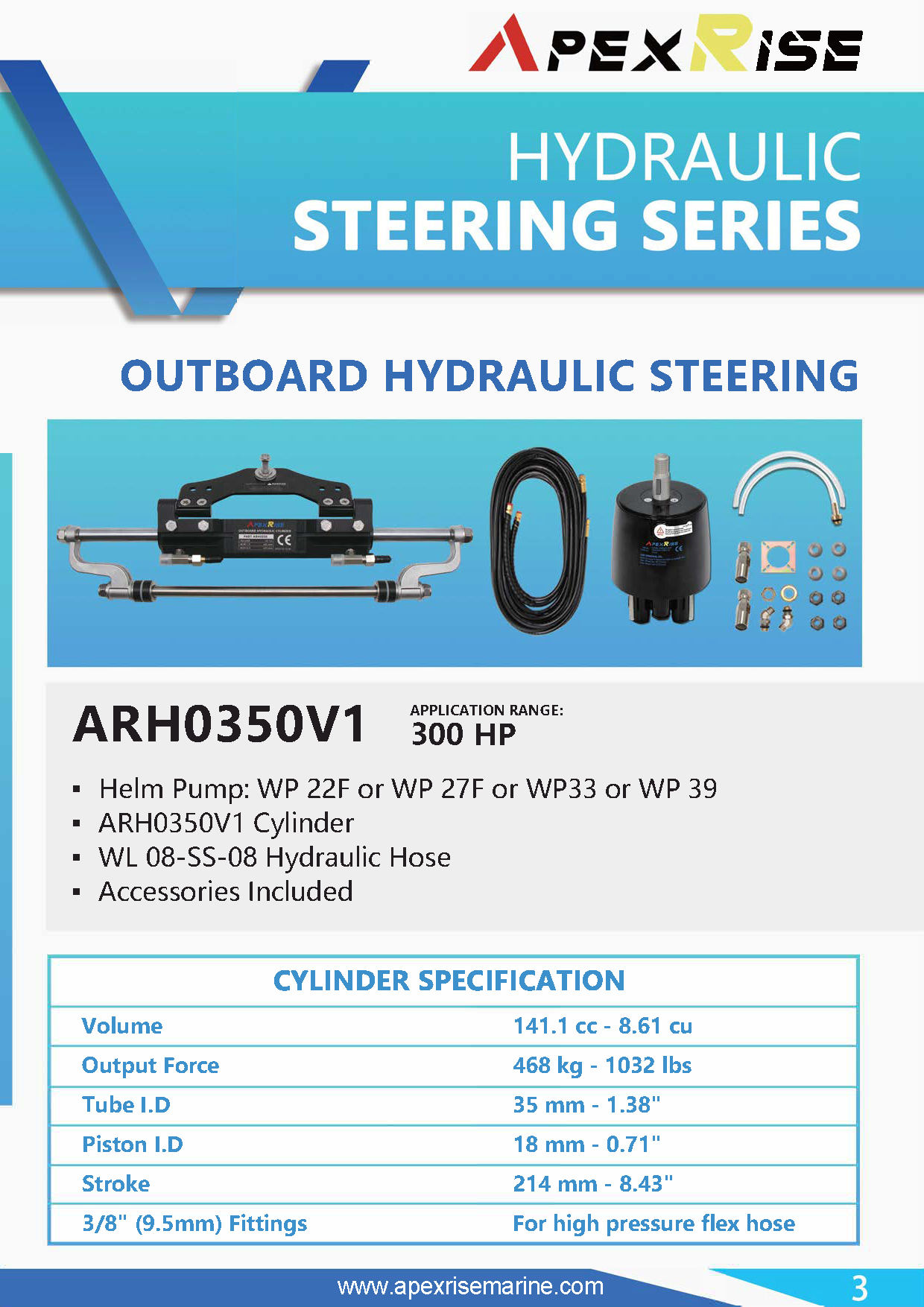

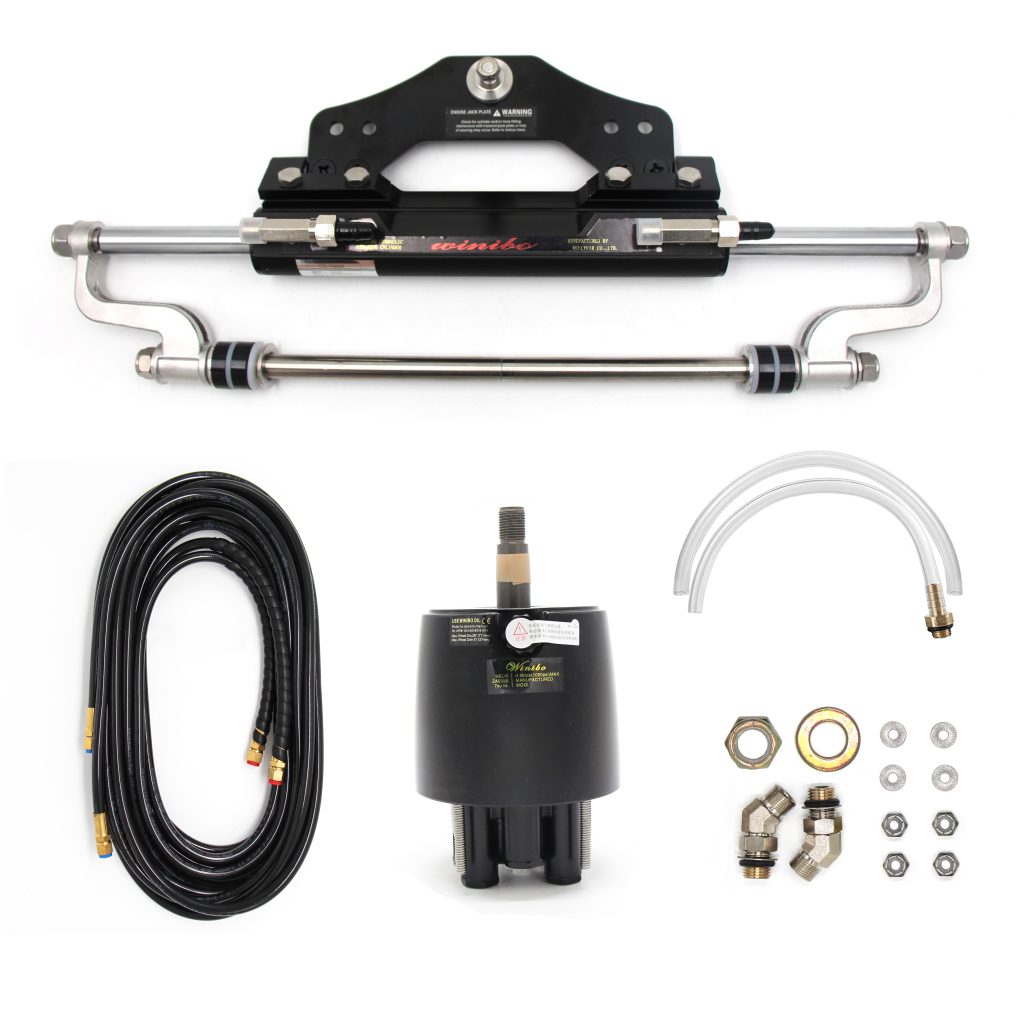

ARH0350V1
Outboard Hydraulic Steering
(Up to 300HP)
High‑Performance Steering for Offshore & High‑Speed Applications
The ARH0350 series is engineered for outboards up to 300HP, delivering powerful hydraulic control for offshore fishing boats, performance hulls, and commercial vessels.
Includes
- Helm Pump: WP 22F / WP 27F / WP33 / WP39
- ARH0350V1 Cylinder
- WL 08‑SS‑08 Hydraulic Hose
- Accessories Included
Hydraulic

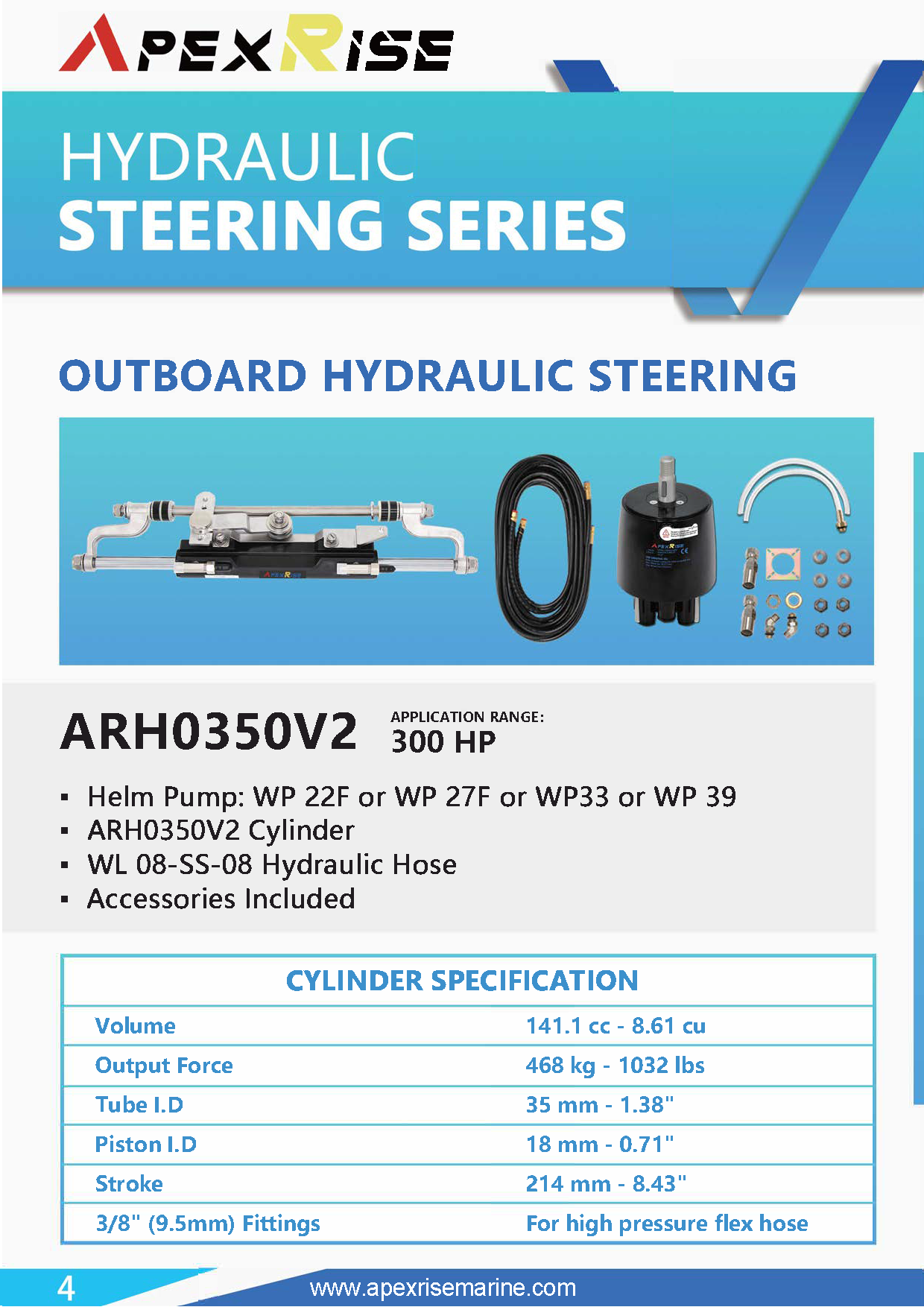

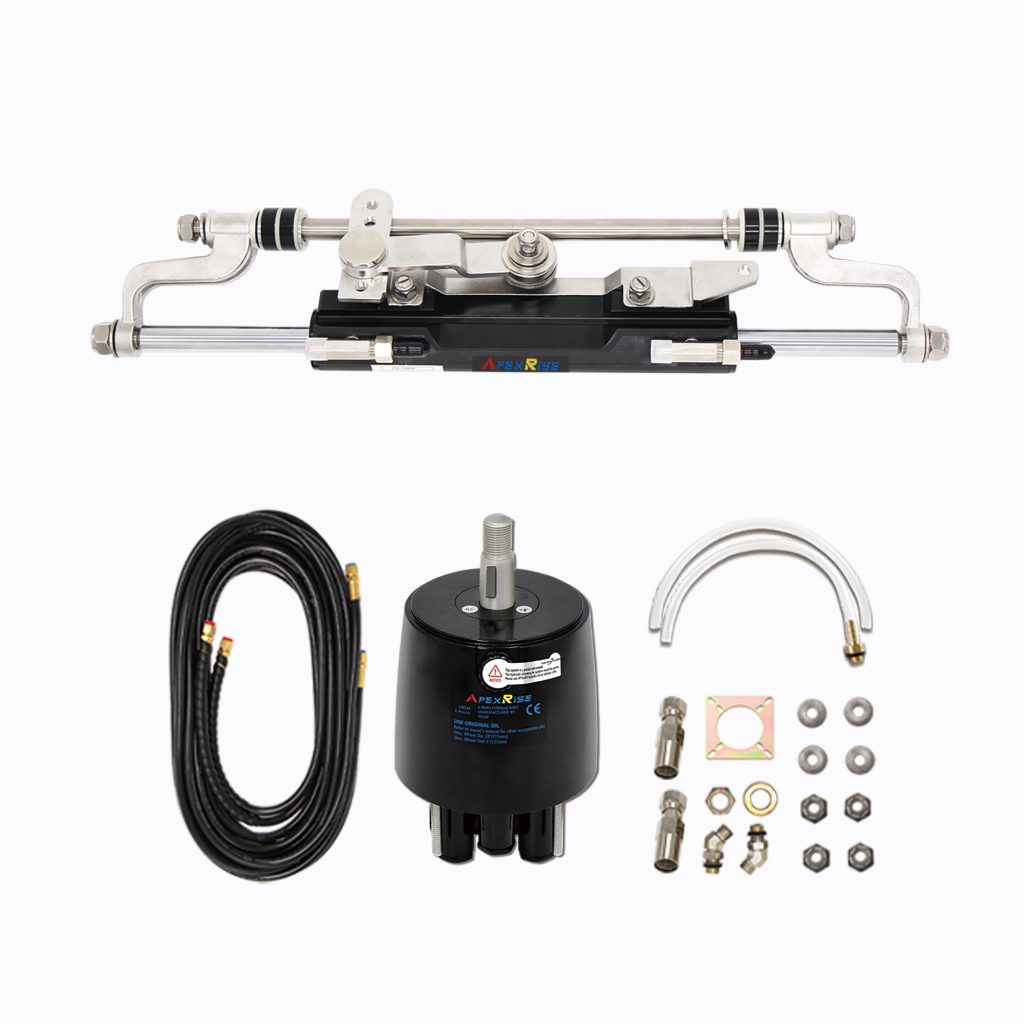

ARH0350V2
Outboard Hydraulic Steering
(Up to 300HP)
High‑Performance Steering for Offshore & High‑Speed Applications
The ARH0350 series is engineered for outboards up to 300HP, delivering powerful hydraulic control for offshore fishing boats, performance hulls, and commercial vessels.
Includes
- Helm Pump: WP 22F / WP 27F / WP33 / WP39
- ARH0350V2 Cylinder
- WL 08‑SS‑08 Hydraulic Hose
- Accessories Included
Hydraulic

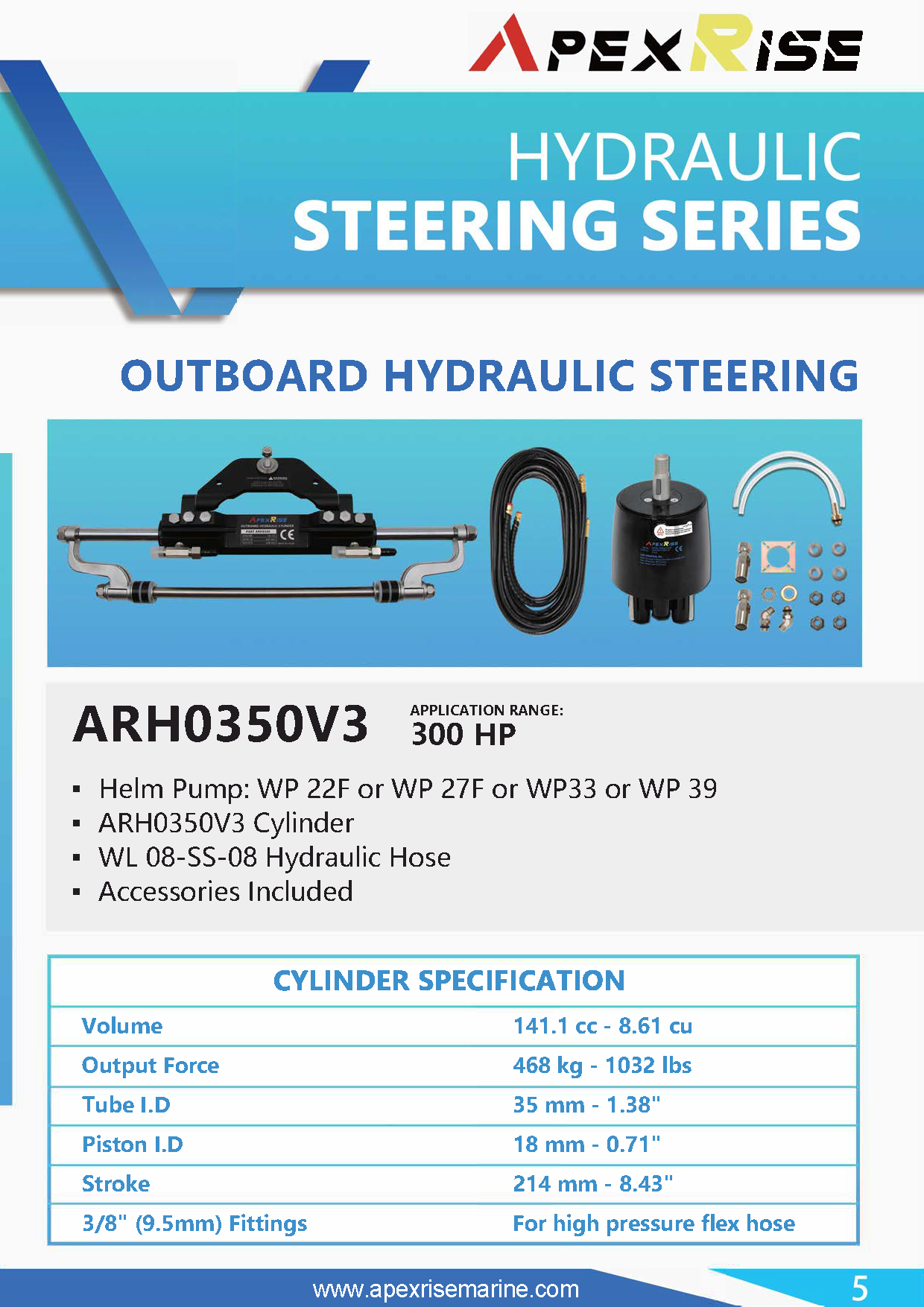

ARH0350V3
Outboard Hydraulic Steering
(Up to 300HP)
High‑Performance Steering for Offshore & High‑Speed Applications
The ARH0350 series is engineered for outboards up to 300HP, delivering powerful hydraulic control for offshore fishing boats, performance hulls, and commercial vessels.
Includes
- Helm Pump: WP 22F / WP 27F / WP33 / WP39
- ARH0350V3 Cylinder
- WL 08‑SS‑08 Hydraulic Hose
- Accessories Included
Hydraulic

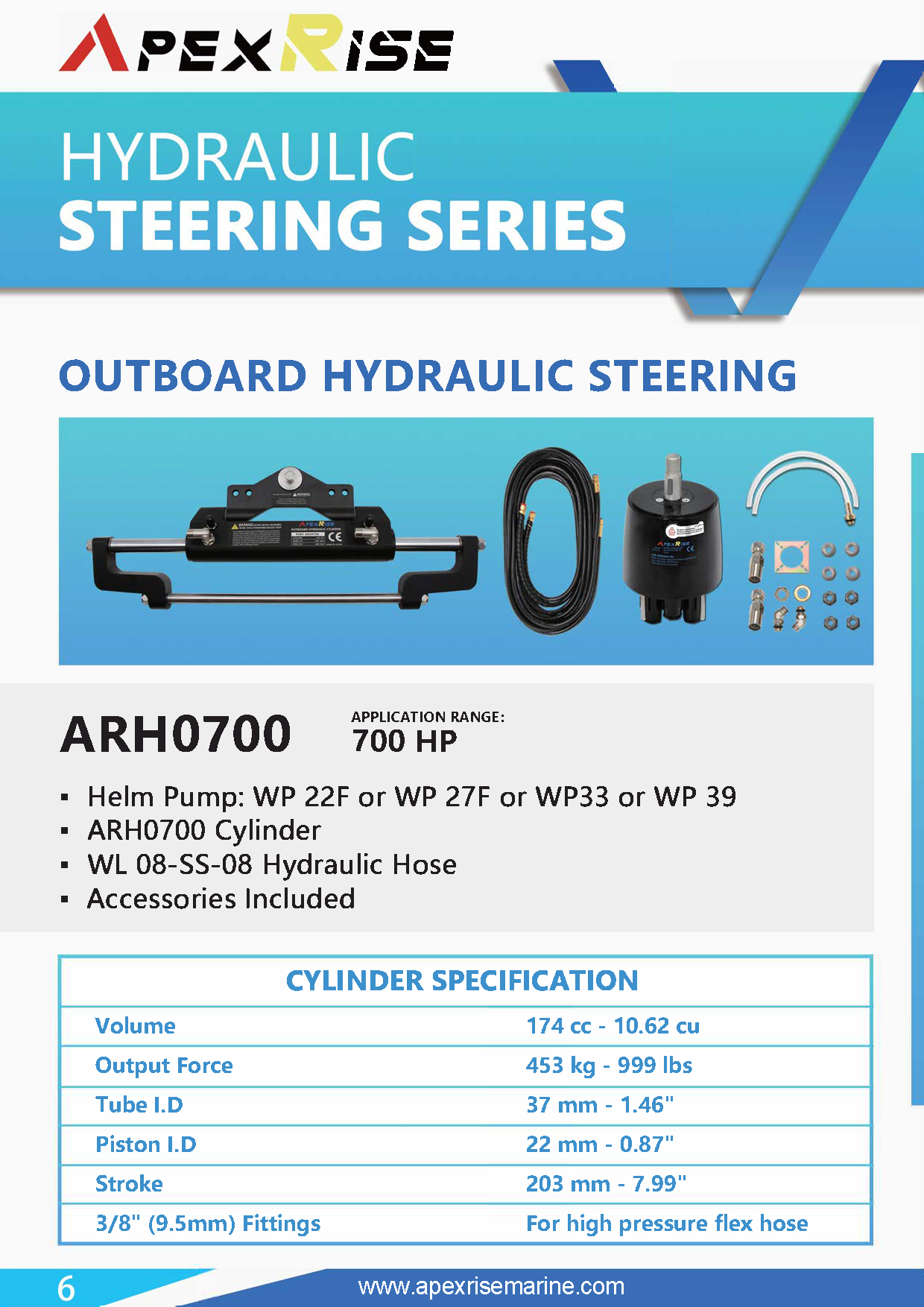

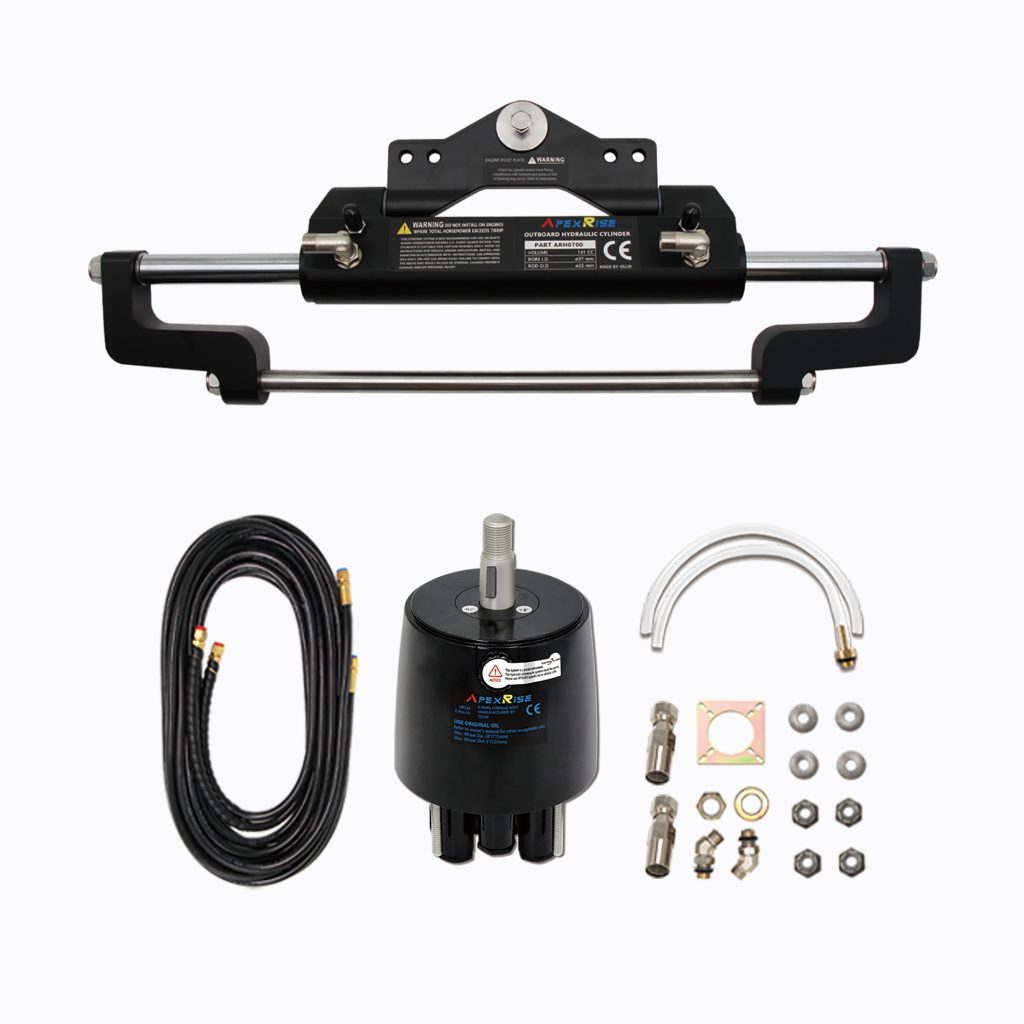

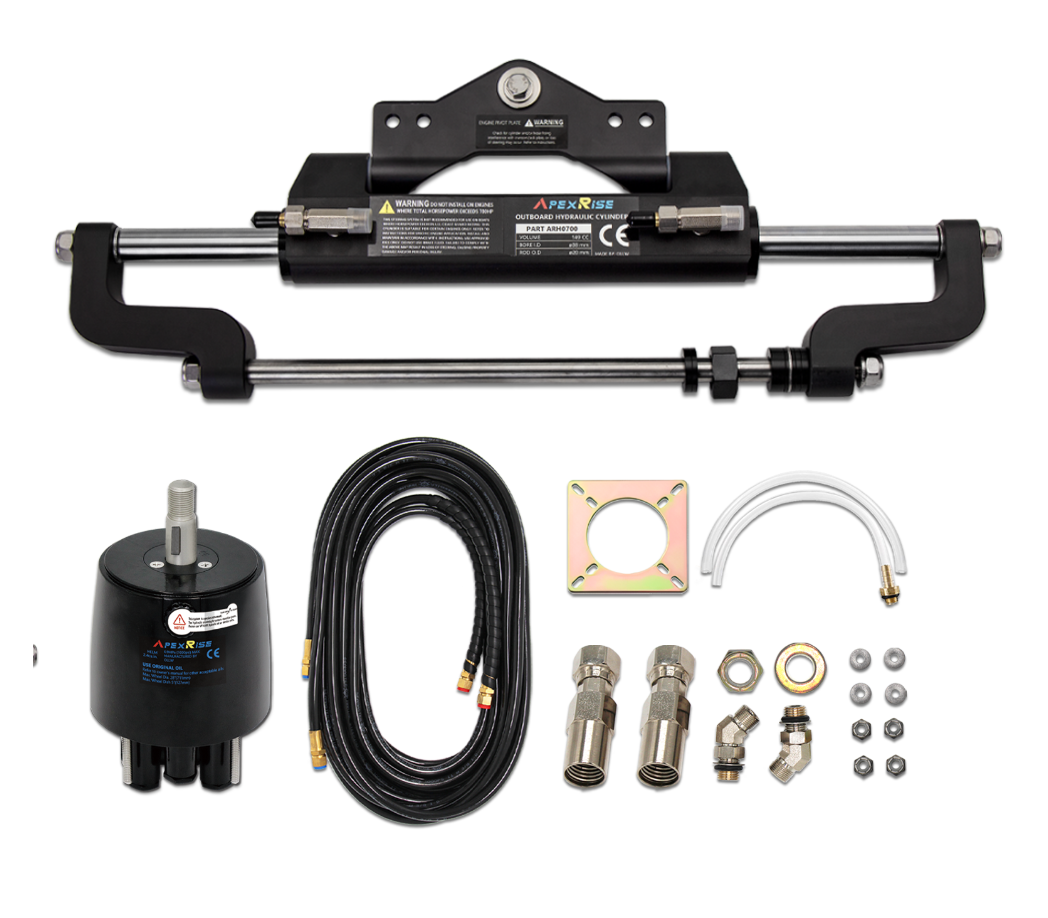

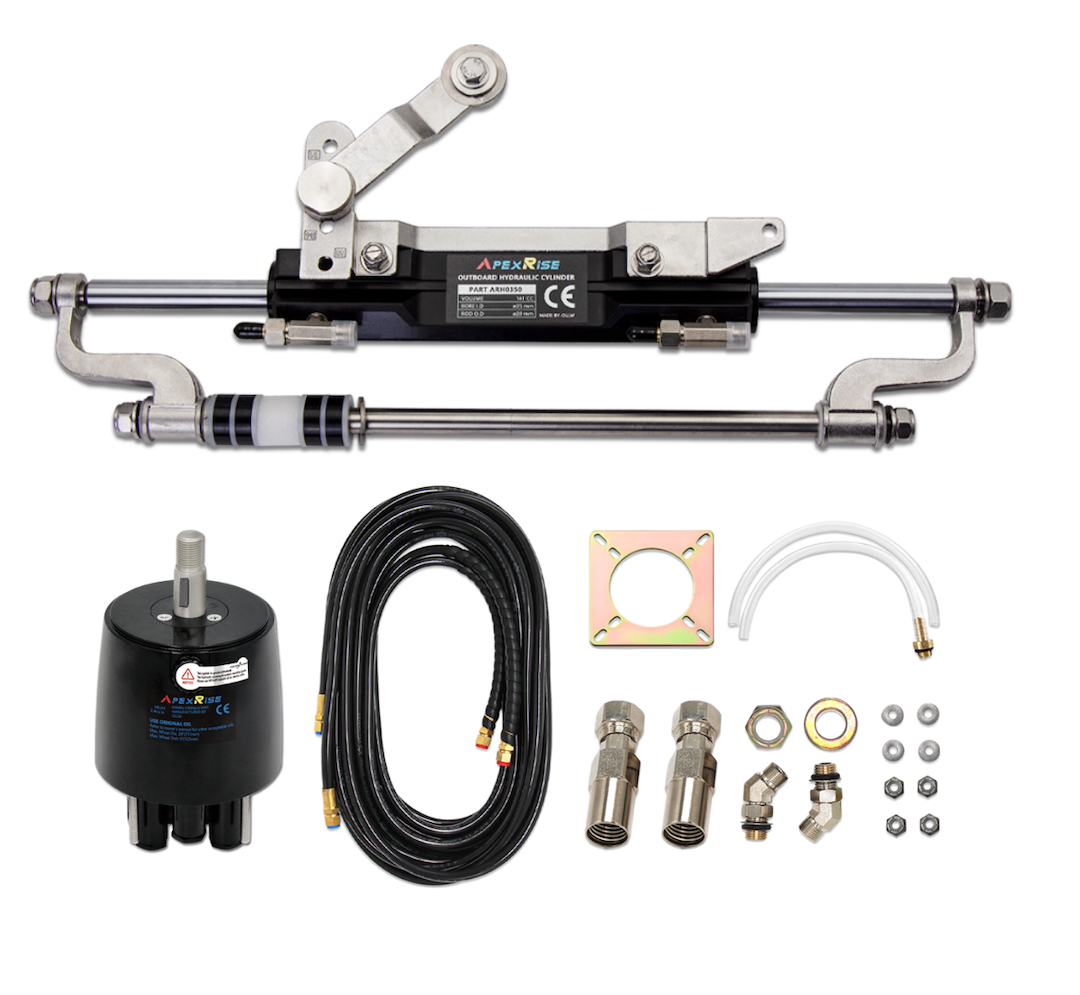

ARH0700
Outboard Hydraulic Steering
(Up to 700HP)
Extreme‑Duty Steering for Twin & High‑Output Outboards
The ARH0700 is built for vessels running up to 700HP combined output. With a large‑bore cylinder and high‑pressure helm compatibility, it delivers unmatched control for offshore performance.
Includes
-
Helm Pump: WP 22F / WP 27F / WP33 / WP39
-
ARH0700 Cylinder
-
WL 08‑SS‑08 Hydraulic Hose
-
Accessories Included
Hydraulic

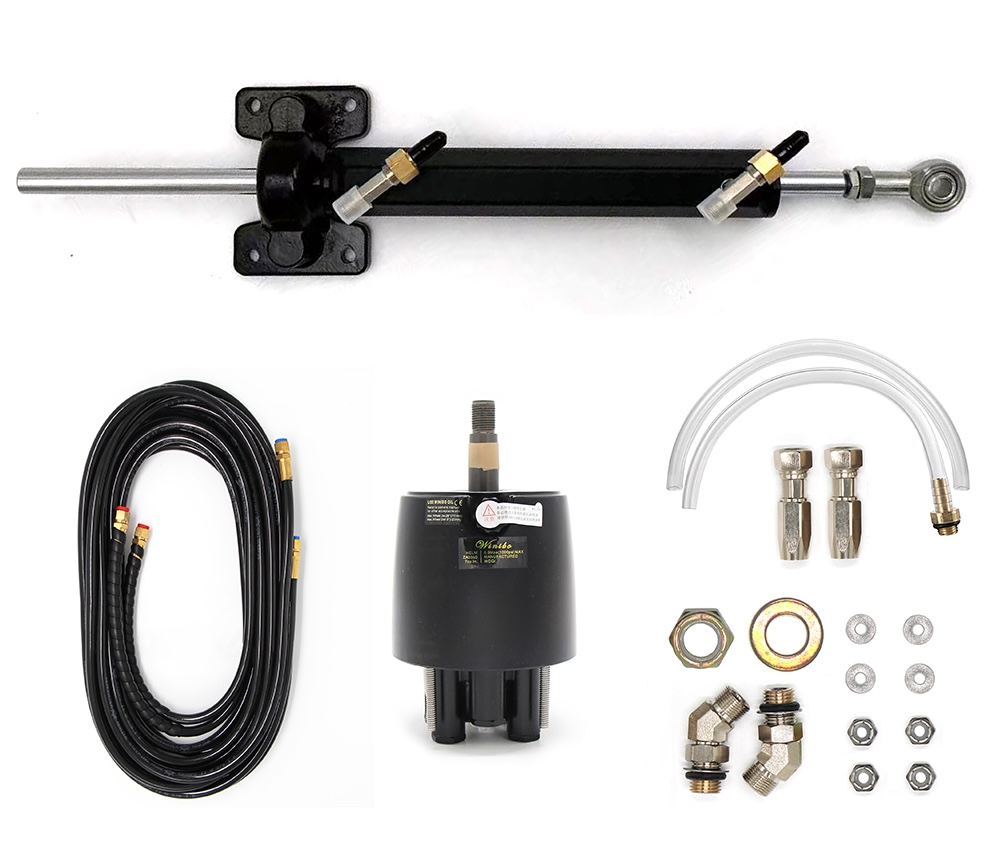

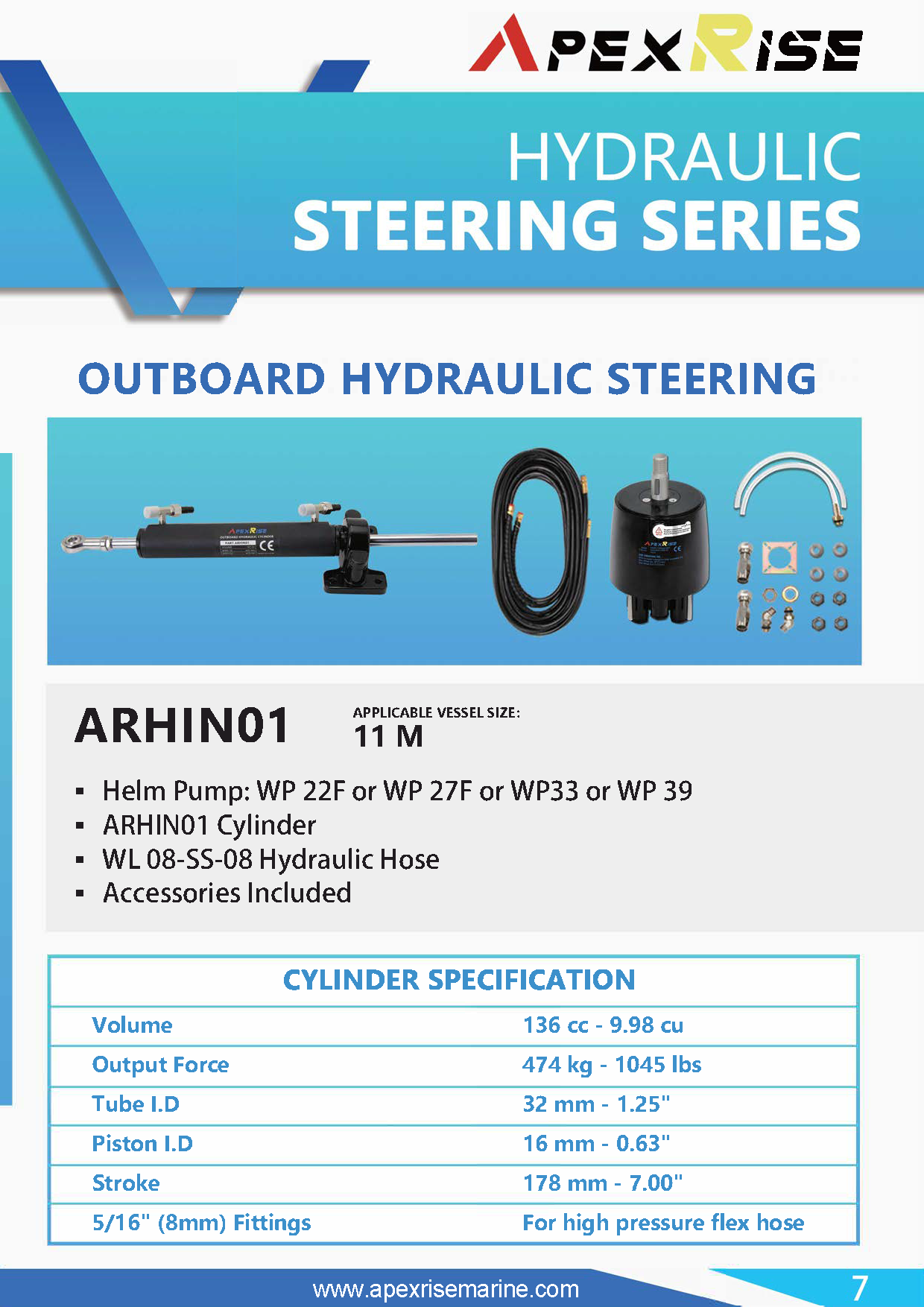

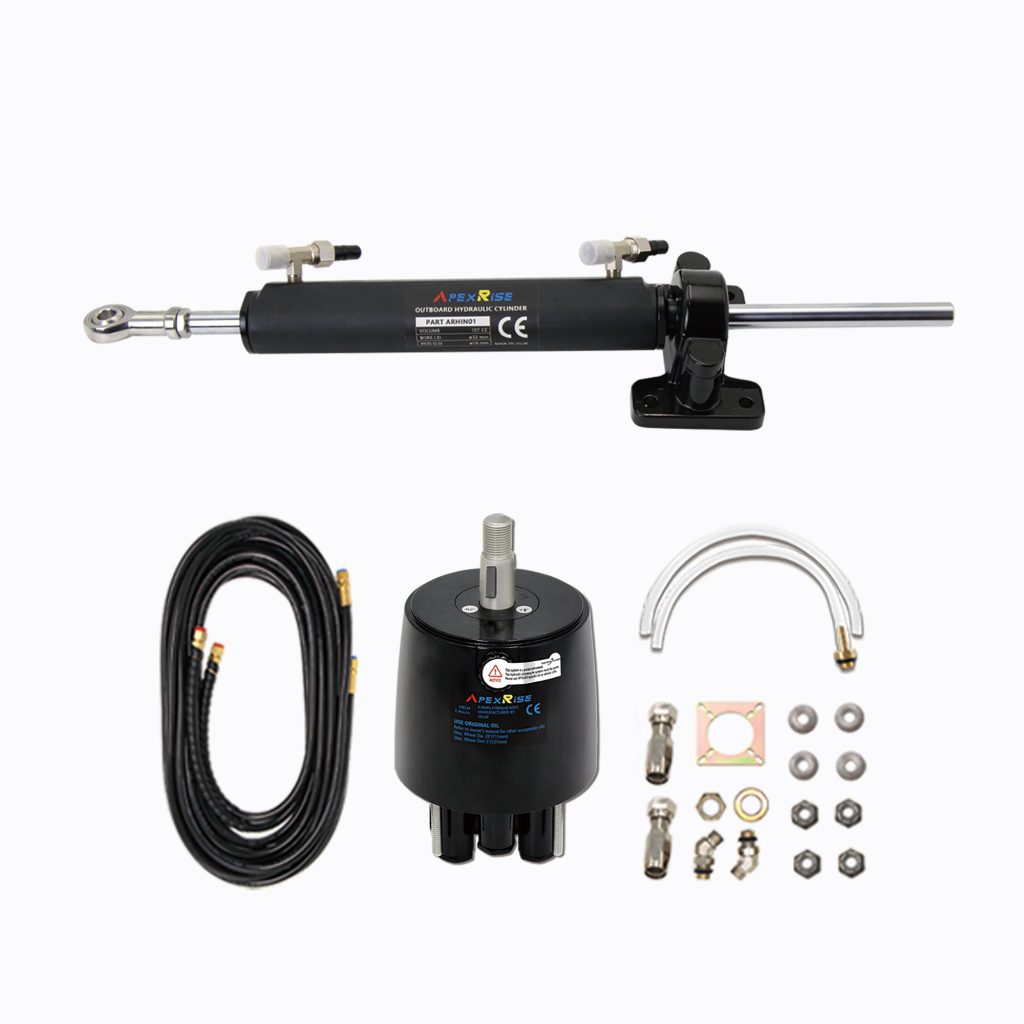

ARHIN01
Inboard Hydraulic Steering
(Up to 11 meter Vessels)
Smooth, Predictable Steering for Mid‑Size Inboard Boats
Designed for vessels up to 11 meters, the ARHIN01 system provides balanced hydraulic control for cruisers, workboats, and leisure craft.
Cylinder Specifications
- Volume: 136 cc / 9.98 cu in
- Output Force: 474 kg / 1045 lbs
- Tube I.D: 32 mm (1.25″)
- Piston I.D: 16 mm (0.63″)
- Stroke: 178 mm (7.00″)
hydraulic

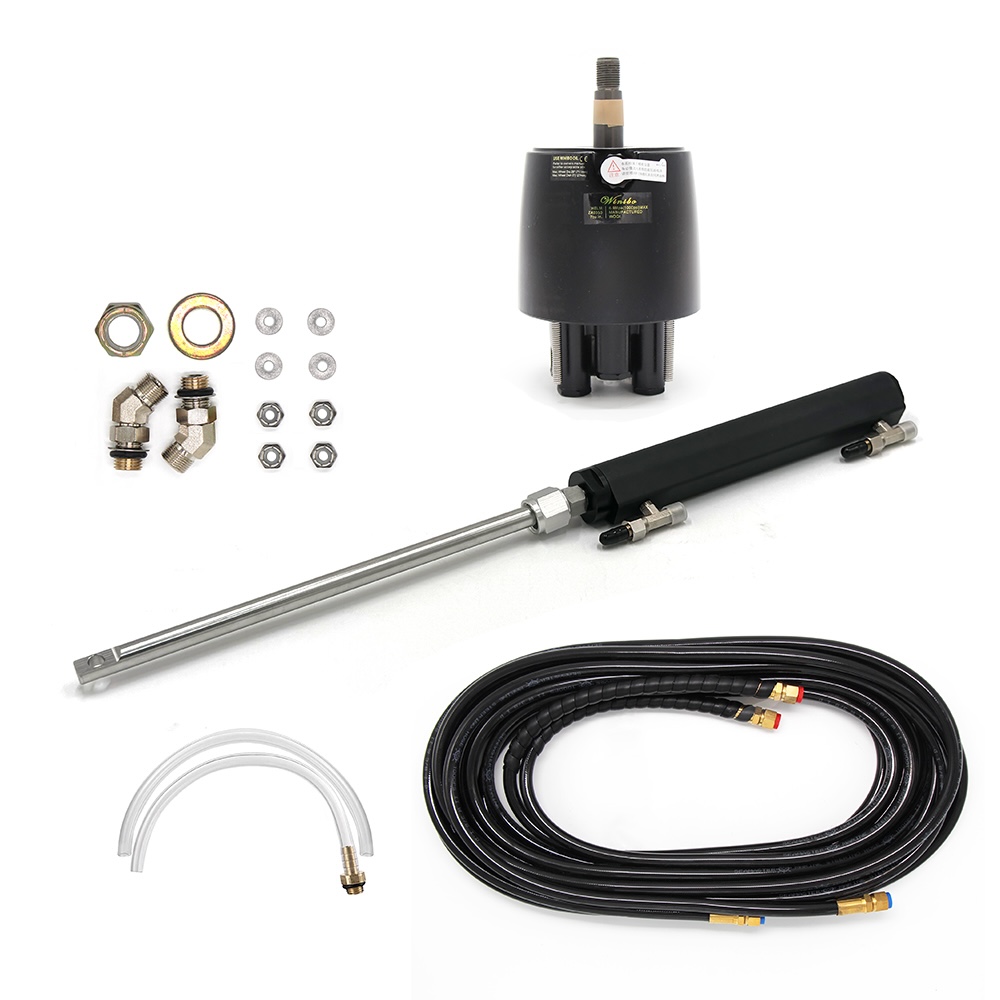

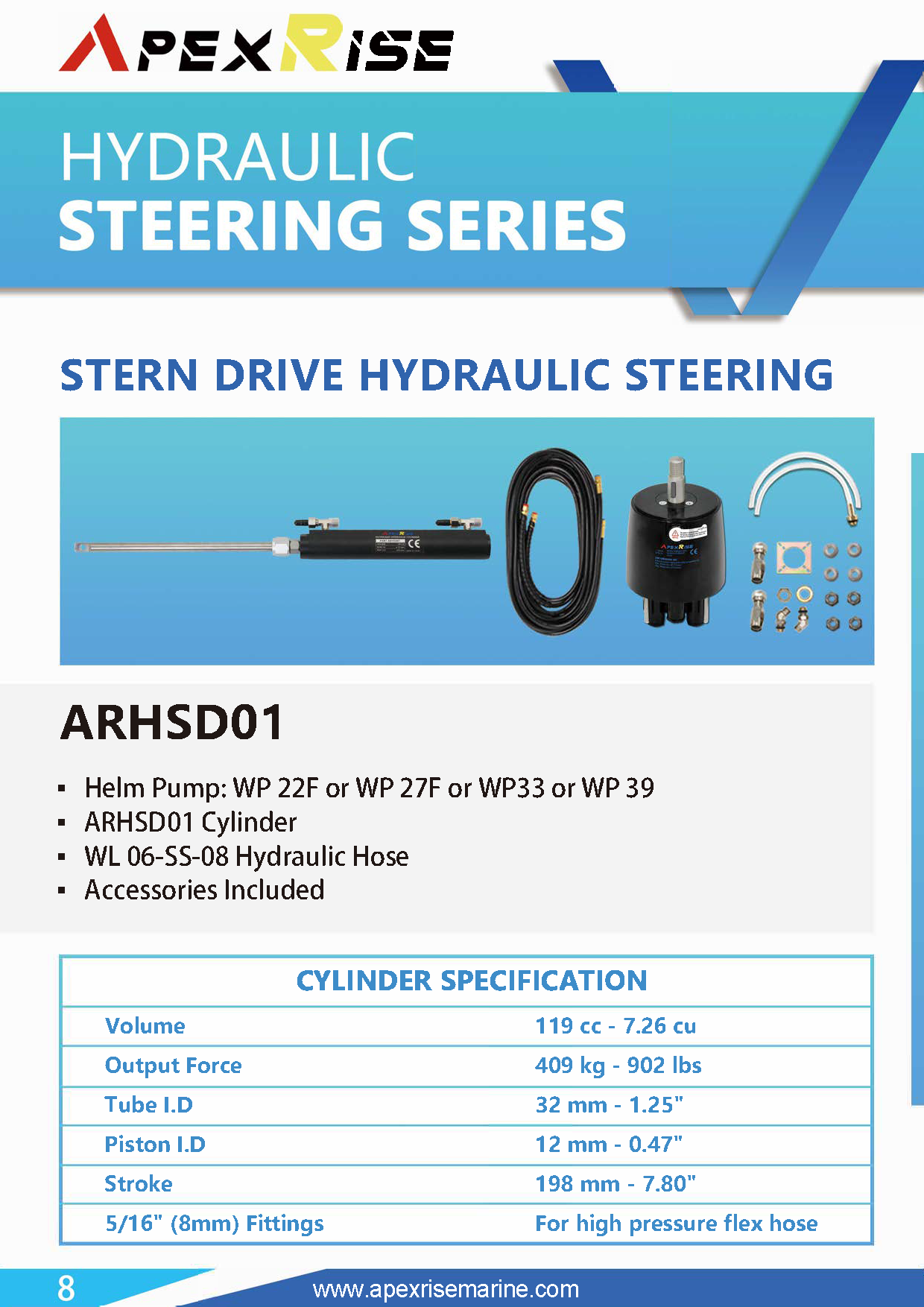

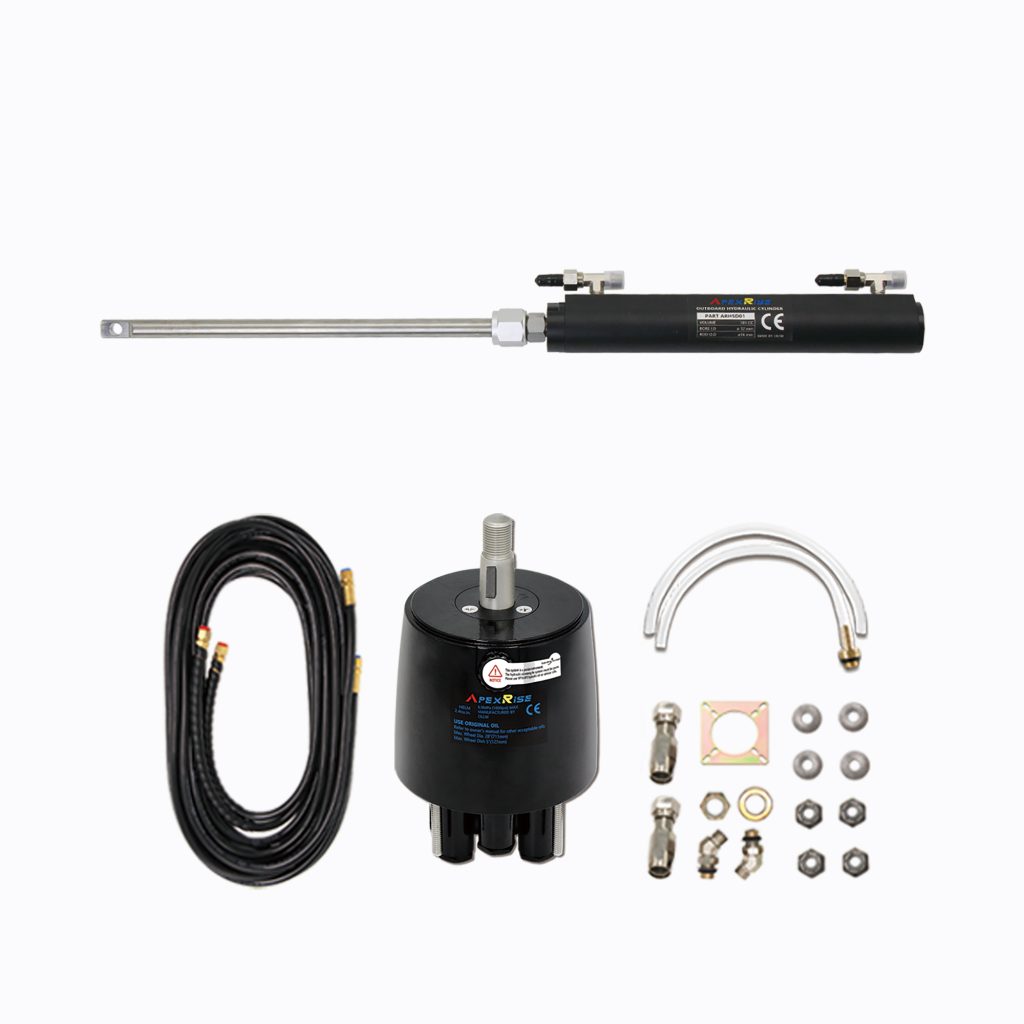

ARHSD01
Stern Drive Hydraulic Steering
High‑Pressure Steering for Stern Drive Applications
The ARHSD01 system delivers strong, responsive steering for stern‑drive vessels, with a compact cylinder and high‑pressure helm compatibility.
Cylinder Specifications
- Volume: 119 cc / 7.26 cu in
- Output Force: 409 kg / 902 lbs
- Tube I.D: 32 mm (1.25″)
- Piston I.D: 16 mm (0.63″)
- Stroke: 198 mm (7.80″)
Hydraulic

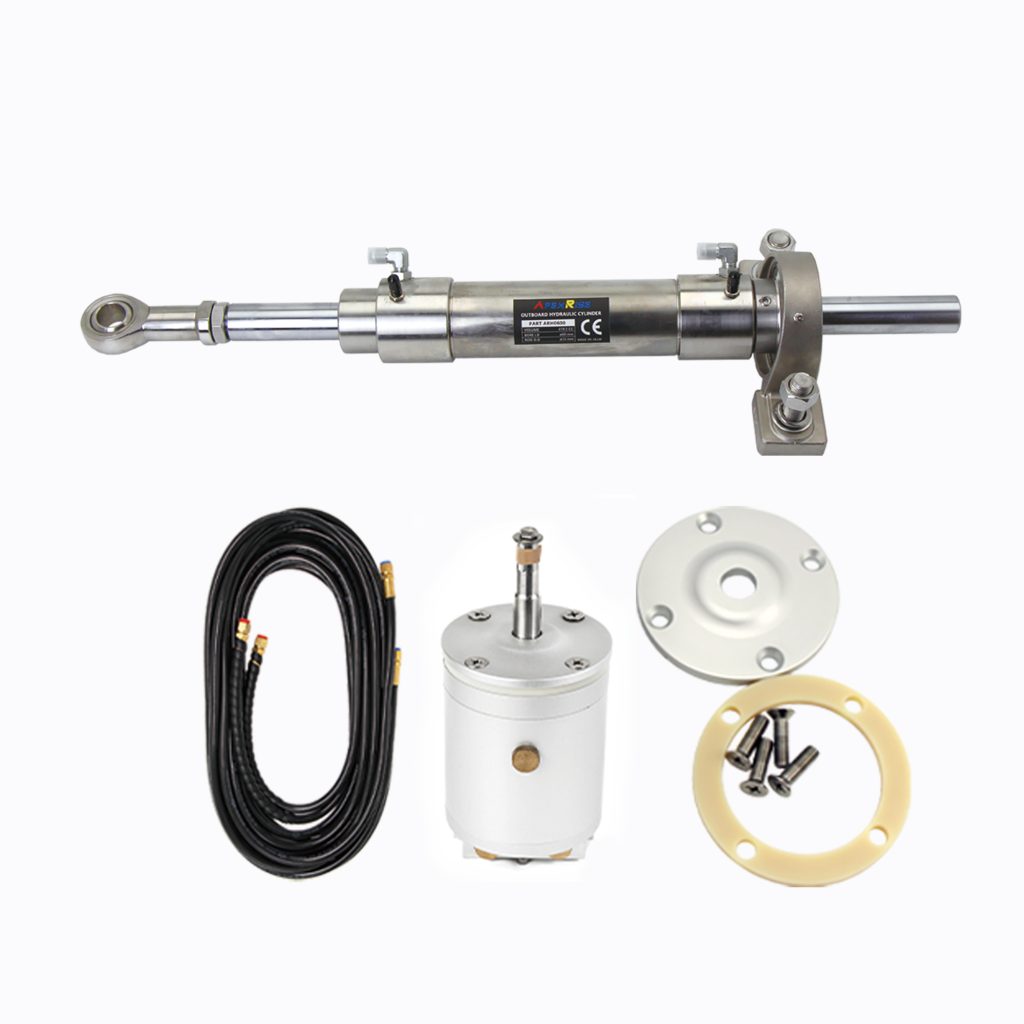

ARH0600
Heavy‑Duty Inboard Steering
(Up to 27 meter Vessels)
Large‑Vessel Hydraulic Steering for Commercial & Offshore Craft
The ARH0600 is engineered for large vessels up to 27 meters, delivering massive hydraulic output and long‑stroke control.
Cylinder Specifications
- Volume: 419 cc / 25.67 cu in
- Output Force: 924 kg / 2037 lbs
- Tube I.D: 60 mm (2.36″)
- Piston I.D: 35 mm (1.38″)
- Stroke: 325 mm (12.80″)
HYDRAULIC

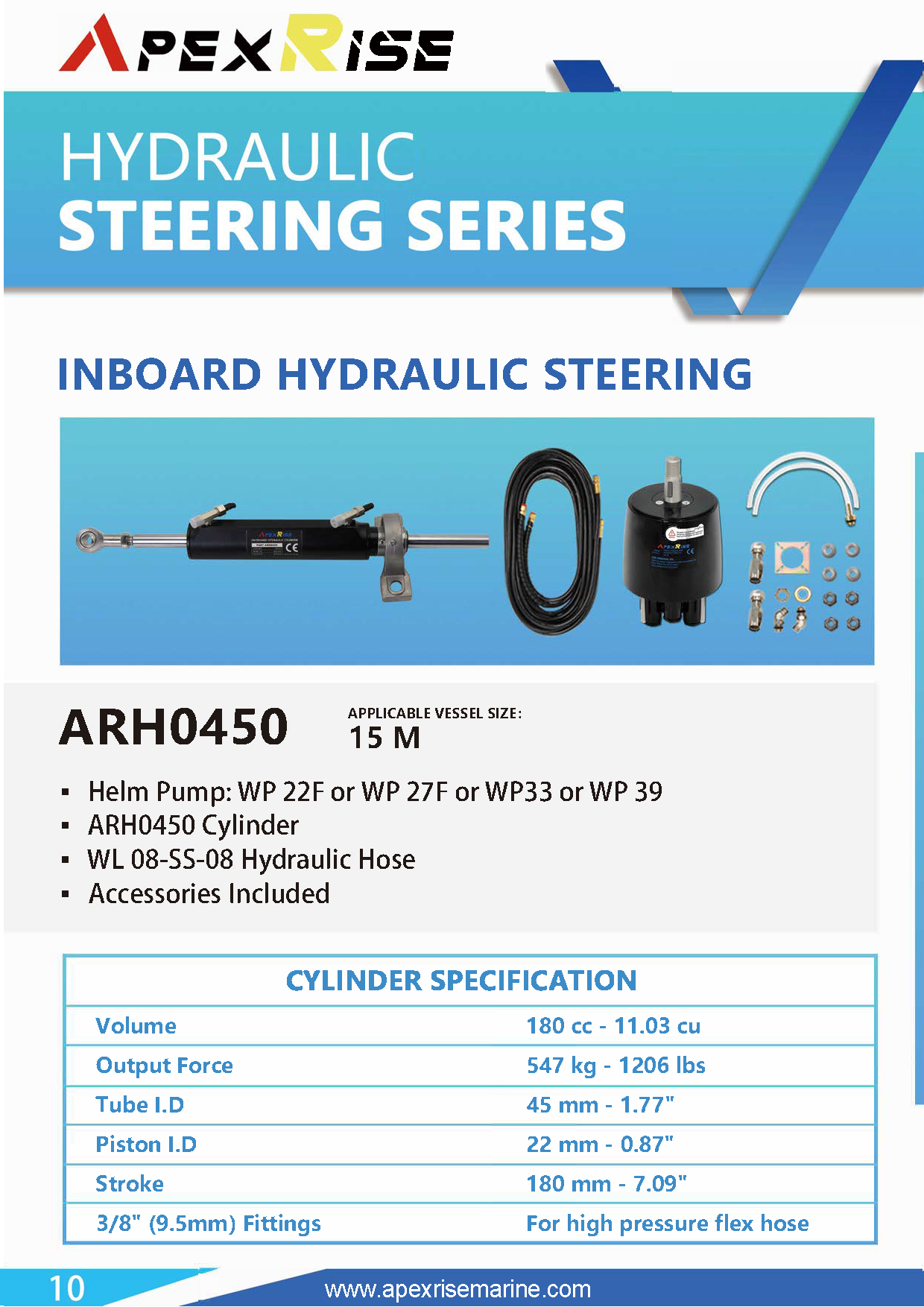

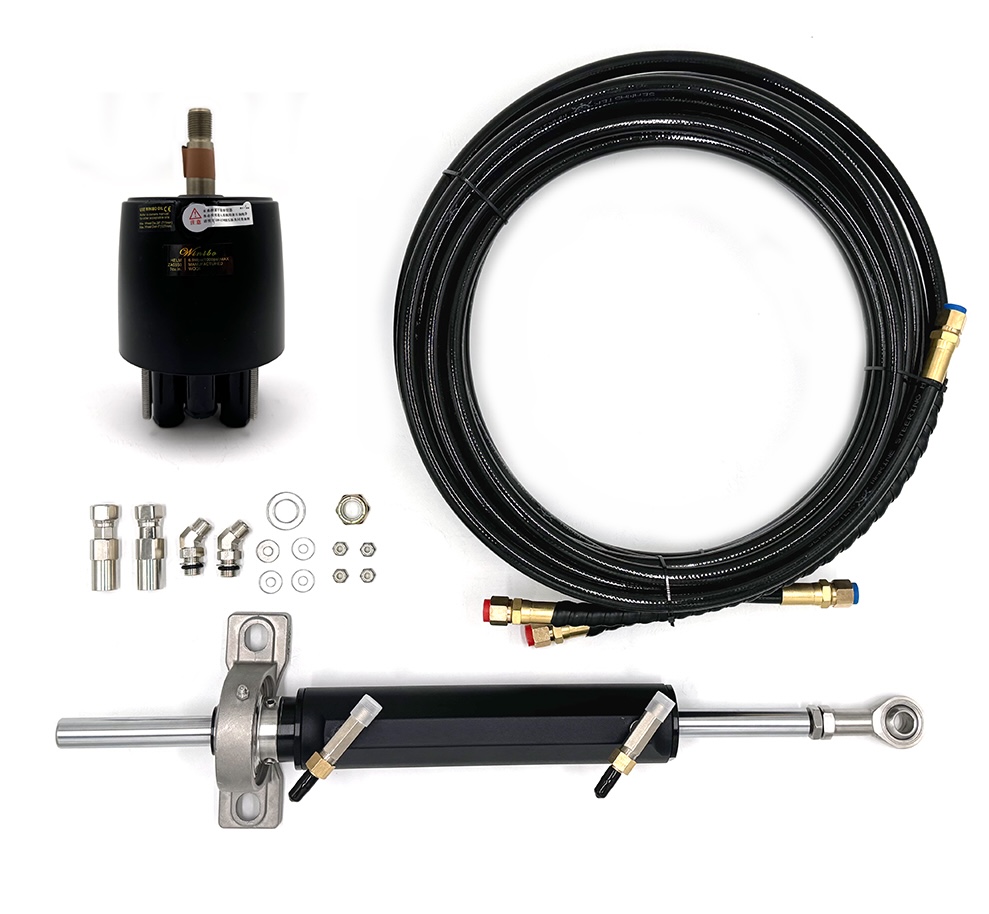

ARH0450
Inboard Hydraulic Steering System
(Up to 15 meter Vessels)
High‑Torque Hydraulic Steering for Mid‑Size Inboard Boats
The ApexRise ARH0450 is engineered for inboard vessels up to 15 meters, delivering powerful, predictable steering performance for cruisers, workboats, and commercial craft. With a large‑bore cylinder and high‑pressure helm compatibility, the ARH0450 provides smooth helm feel, excellent mid‑range control, and the durability required for long‑distance operation.
Includes
- Helm Pump: WP 22F / WP 27F / WP33 / WP39
- ARH0450 Cylinder
- WL 08‑SS‑08 Hydraulic Hose
- Full accessory kit (“Helm Pump: WP 22F or WP 27F or WP33 or WP 39… Accessories Included”)
Ideal For
- Inboard cruisers
- Commercial vessels
- Utility and workboats
- Mid‑size leisure craft up to 15m
Hydraulic

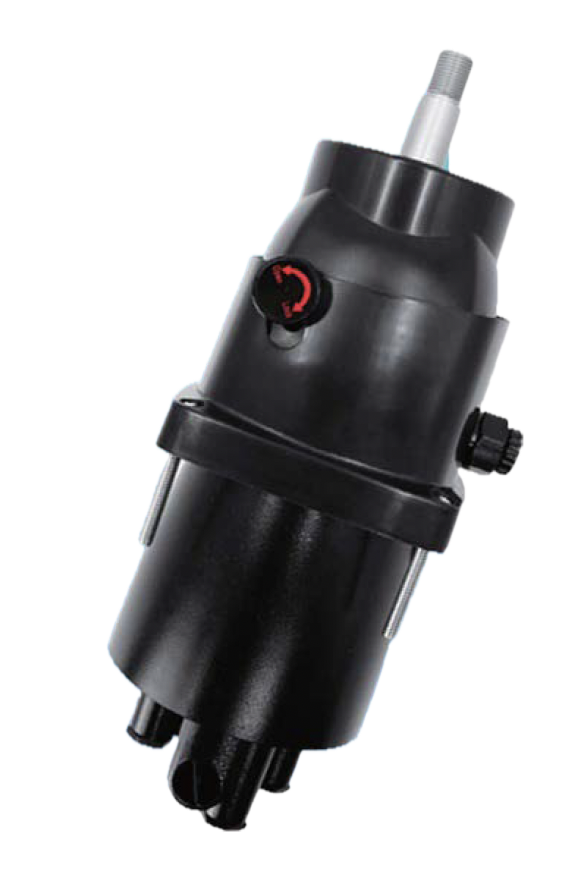

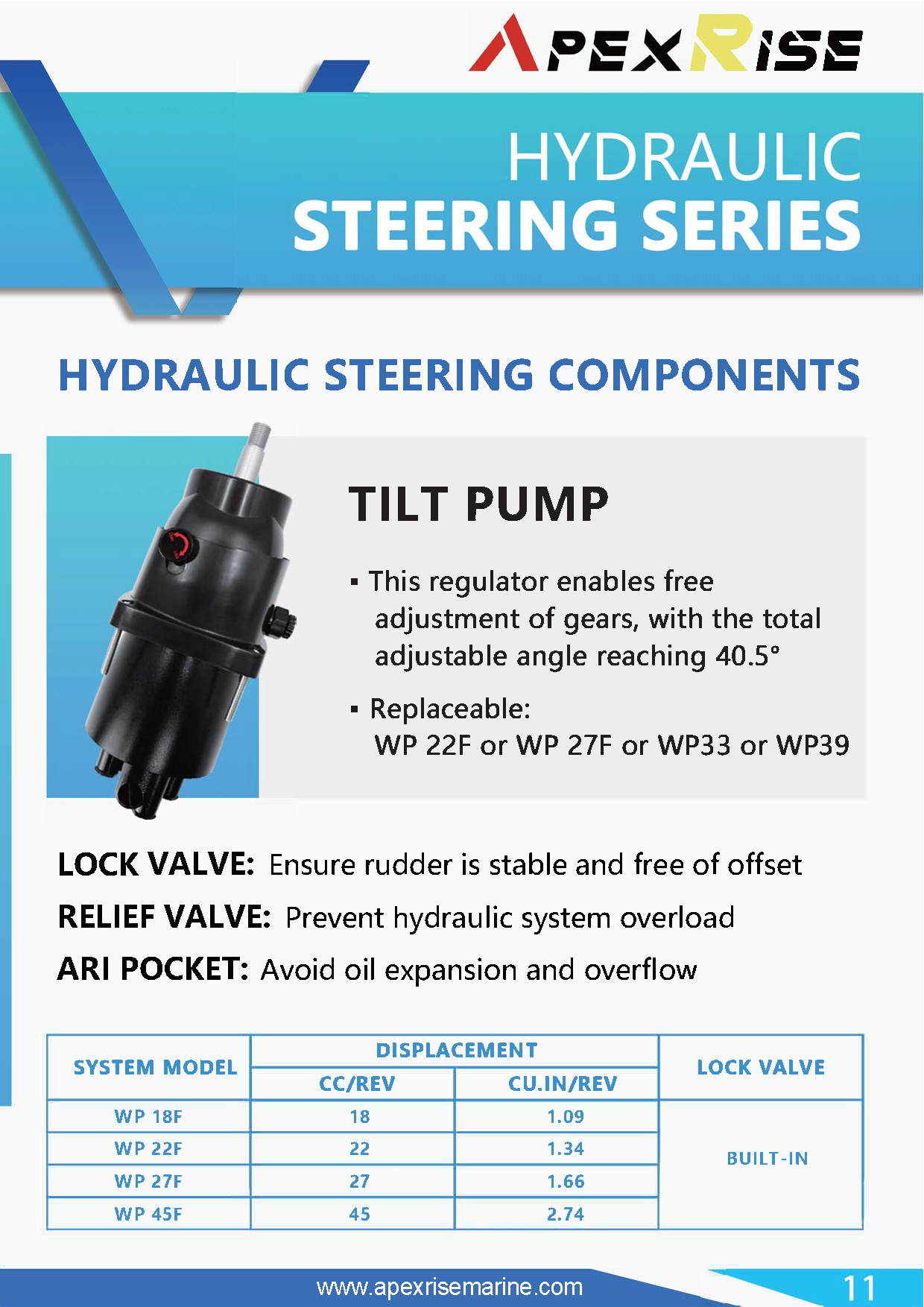

WP 18F,22F,27F,45F
Tilt Pump Series
Precision Helm Pumps for All ApexRise™ Steering Systems
ApexRise™ helm pumps deliver smooth steering feel with built‑in lock valves, relief valves, and adjustable gear angle up to 40.5° (“total adjustable angle reaching 40.5°”).
Key Features
- Built‑in lock valve for stable rudder position
- Relief valve prevents system overload
- Air pocket design prevents oil expansion and overflow
- Multiple displacement options for vessel size and steering load
Displacement Options
- WP 18F — 18 cc/rev
- WP 22F — 22 cc/rev
- WP 27F — 27 cc/rev
- WP 45F — 45 cc/rev
The ApexRise™ Steering System Advantage
Precision Steering for Every Vessel. Engineered for the Sea.
ApexRise™ Hydraulic Steering Systems are built for boaters who demand absolute control — from shallow‑water fishing boats to offshore performance machines. Every helm, cylinder, and hose is engineered as part of a unified hydraulic ecosystem, delivering smooth, predictable steering feel at any speed and under any load.
Why ApexRise Steering Leads the Industry
High‑Pressure Hydraulic Stability Our cylinders deliver consistent output force and smooth helm response, even under heavy load, high‑speed turns, or offshore chop.
Marine‑Grade Construction Precision‑machined pistons, reinforced tube housings, and corrosion‑resistant materials ensure long‑term durability in saltwater and freshwater environments.
Matched Helm + Cylinder Integration Each system is optimized with the correct helm displacement, cylinder volume, and hose configuration for balanced, predictable steering.
High‑Pressure Flex Hose Compatibility All systems include stainless‑reinforced hoses designed for high‑pressure marine steering applications.
OEM‑Level Fit & Performance ApexRise steering integrates cleanly with modern outboards, inboards, and stern drives — ideal for new builds, repowers, and performance upgrades.
Built for Installers. Trusted by Operators.

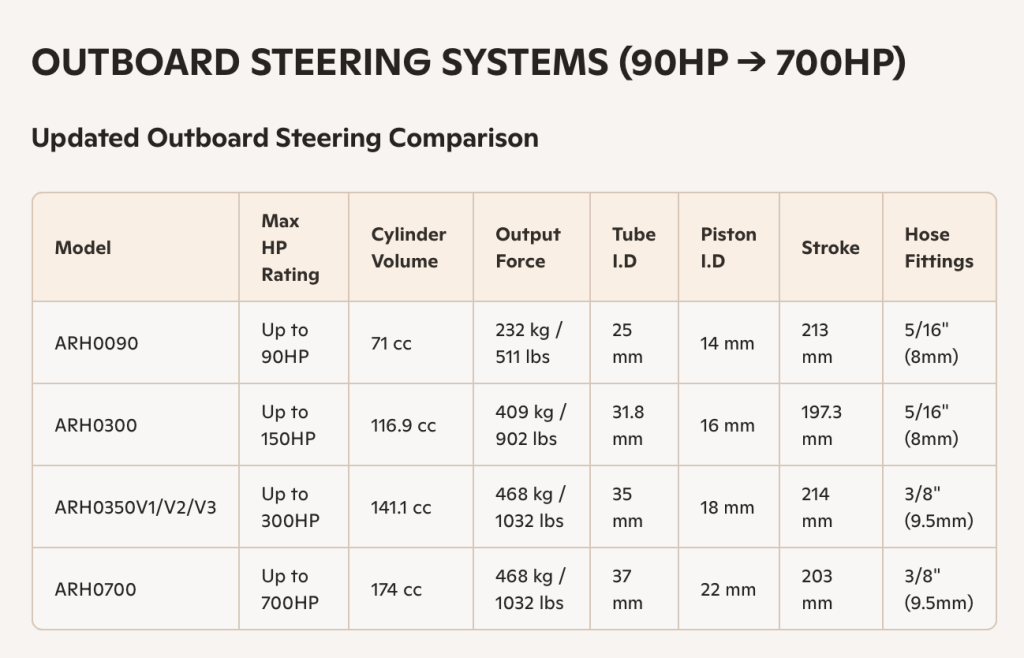

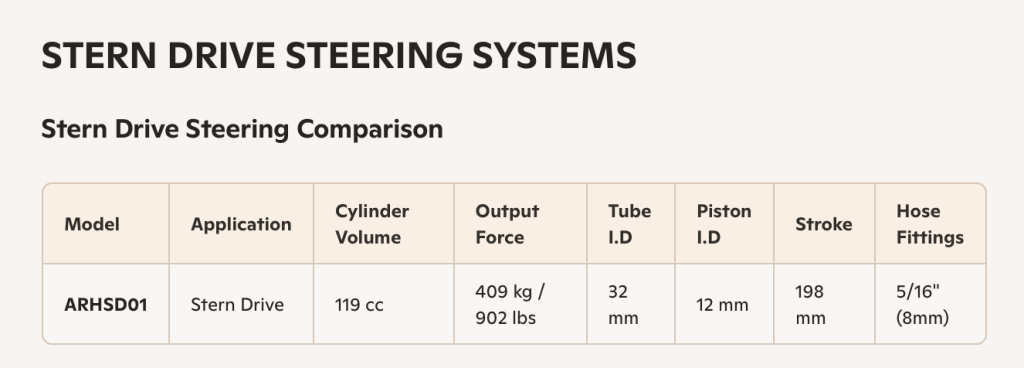

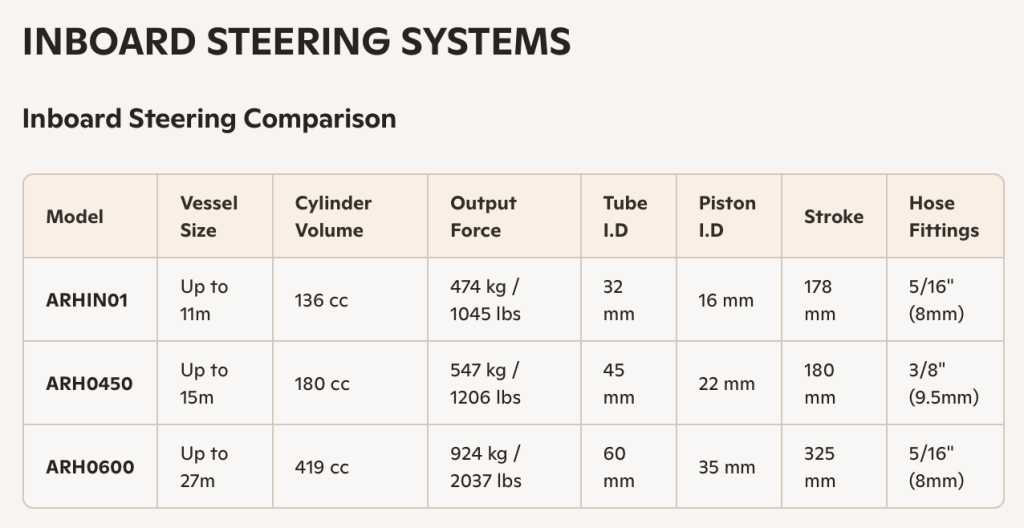

📊 HYDRAULIC STEERING — COMPARISON TABLES
