Precision Lift – Total Control
ApexRise™ Jack Plates — Built for Performance
Unlock your boat’s true potential with the most compact, durable, and responsive hydraulic and manual Outboard Jack Plates in its class. Faster hole shot, higher top‑end speed, and shallow‑water capability—engineered into one ultra‑rigid, corrosion‑resistant system.
Rise above ordinary. Run ApexRise™.
Hydraulic

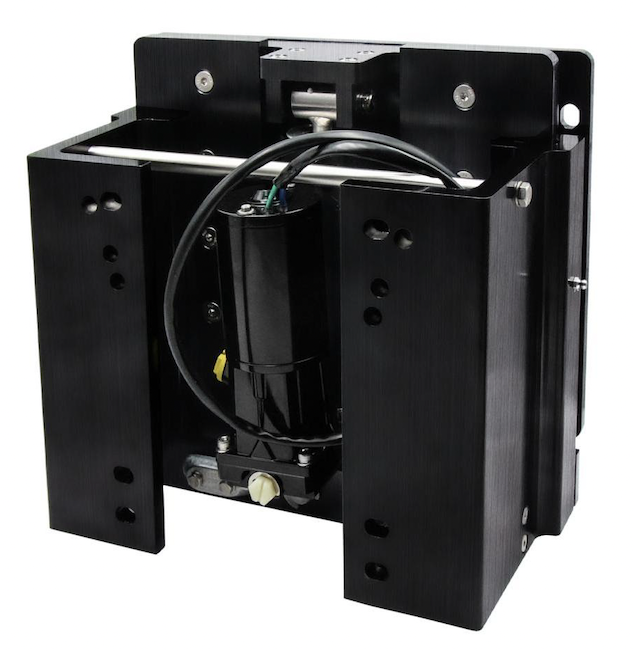

JPH1500
The Ultra‑Compact Hydraulic Jack Plate for 150 HP Outboards
Maximum Lift. Minimal Footprint. Pure ApexRise™ Engineering.
The JPH1500 delivers smooth hydraulic lift, a rigid zero‑flex structure, and a compact design engineered for tight transoms and modern hulls. Whether you’re chasing speed, shallow‑water capability, or cleaner water to the prop, the JPH1500 gives you precise control over your engine height without adding unnecessary bulk.
Compact where it counts. Powerful where it matters.
Hydraulic

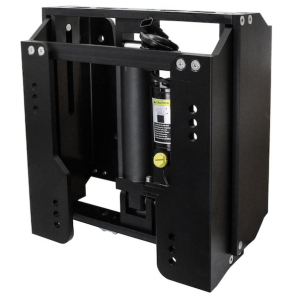

JPH3000
Heavy‑Duty Hydraulic Jack Plate for 300 HP Outboards
The JPH3000 is engineered for high‑horsepower outboards up to 300 HP. Built from precision‑machined 6061 aviation‑grade aluminum, it offers exceptional strength‑to‑weight performance and stable hydraulic lift that won’t bleed down under load.
Hydraulic

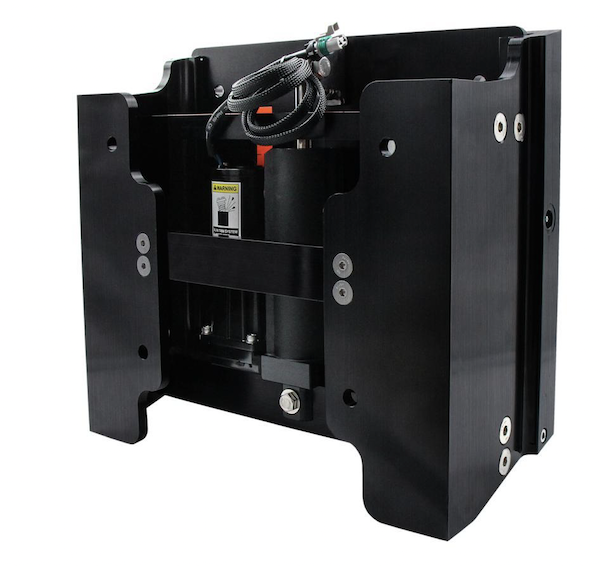

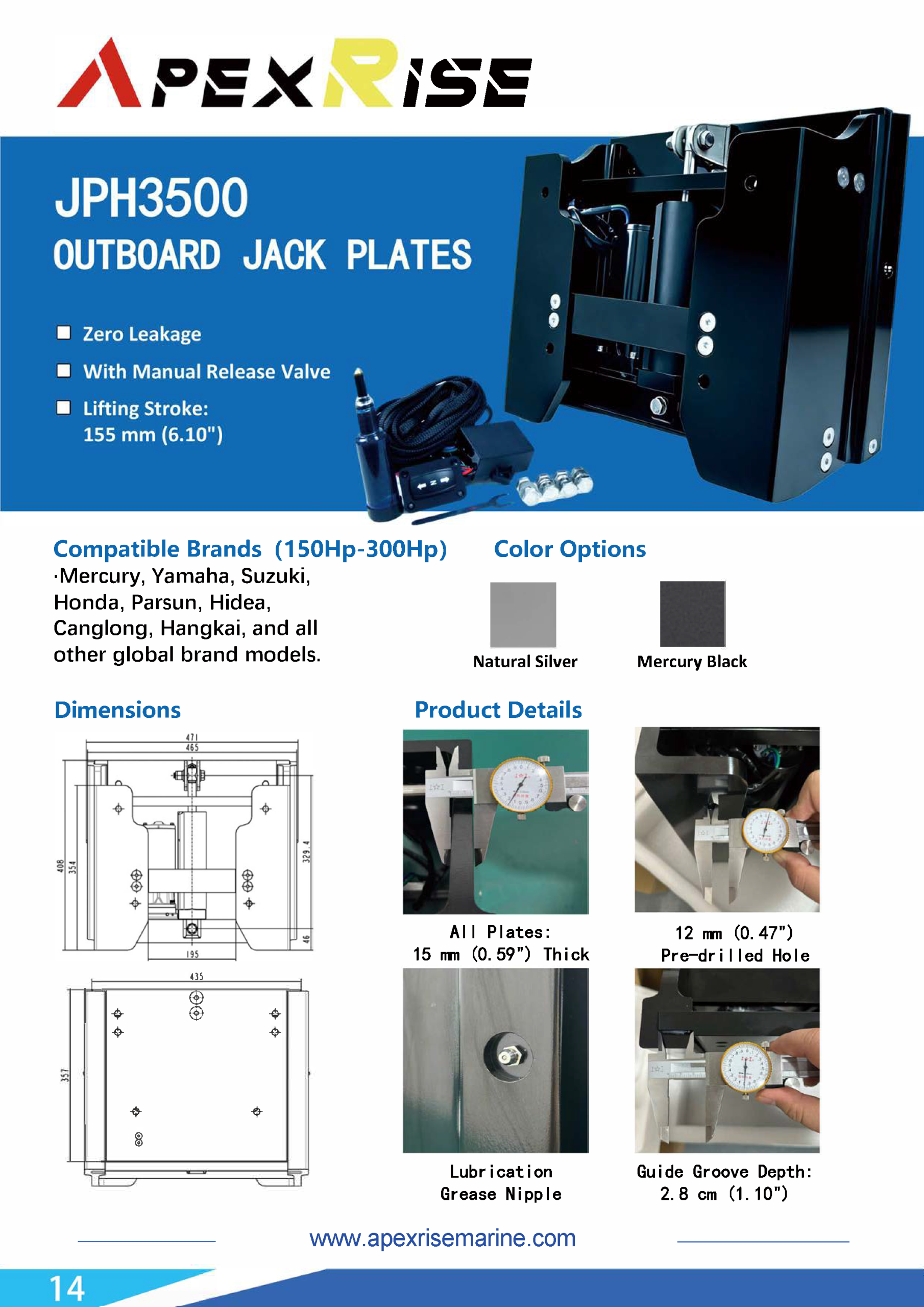

JPH3500
6″ Setback Hydraulic Jack Plate with Integrated Pump
The JPH3500 is a compact, powerful hydraulic jack plate designed for outboards up to 350 HP. With a built‑in pump, 7.5″ total lift, and dual Power‑Pole mounting compatibility, it’s a versatile upgrade for performance‑focused boaters.
hydraulic

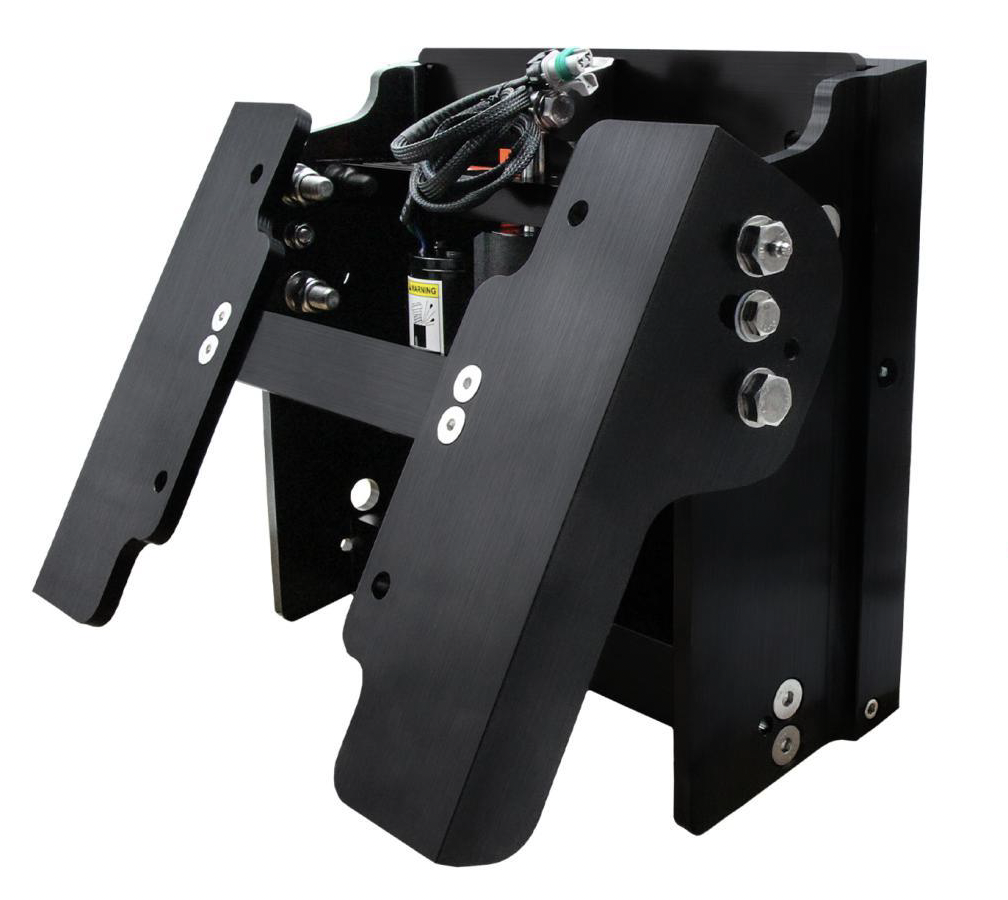

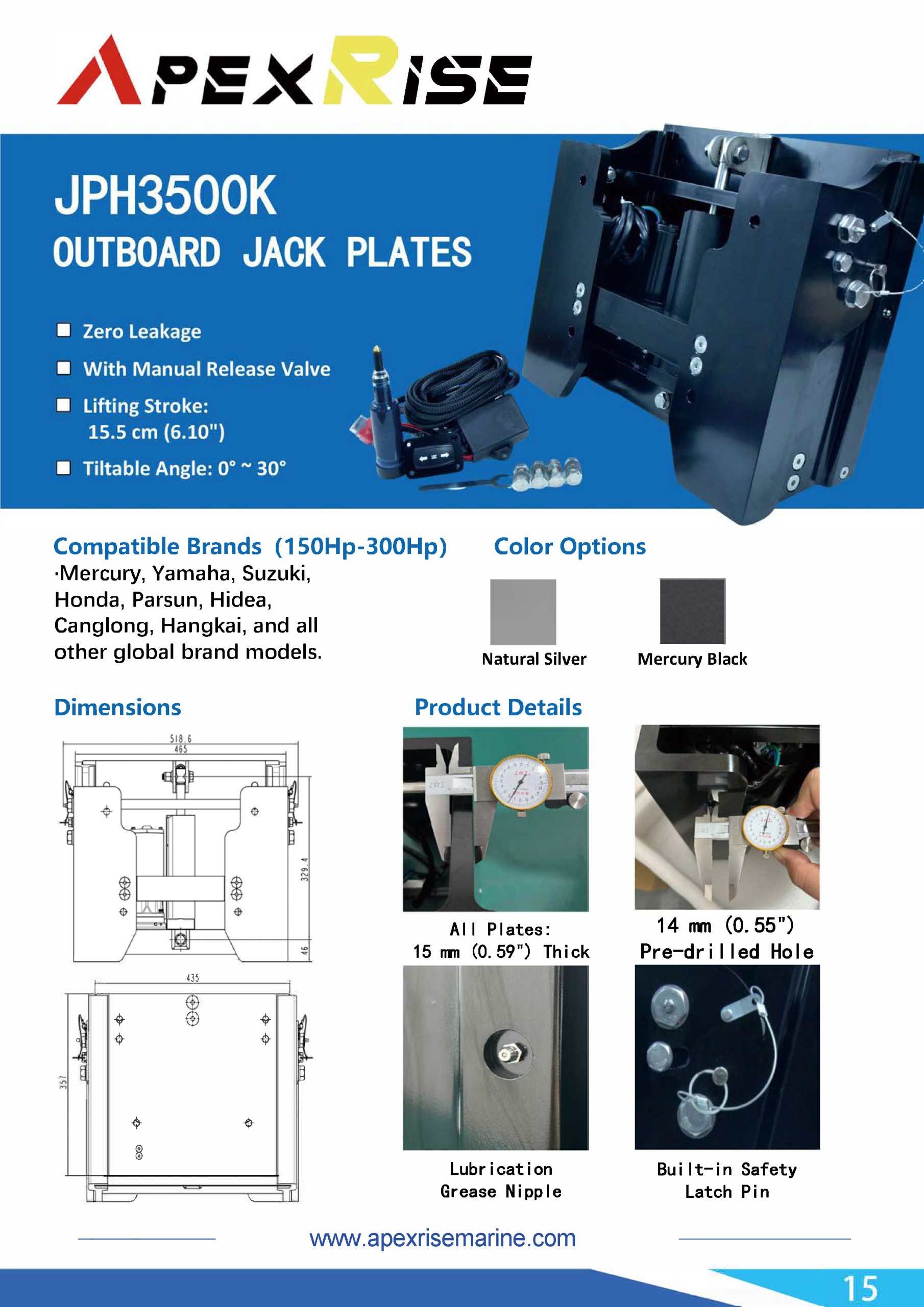

JPH3500K
6″ Hydraulic Kick‑Back Jack Plate
The JPH3500K combines hydraulic lift with a kick‑back safety system that protects your lower unit from underwater impacts. Designed for outboards up to 350 HP. With Delrin bushings and 7.5″ total lift, it’s built for shallow‑water navigation and rugged environments.
Hydraulic

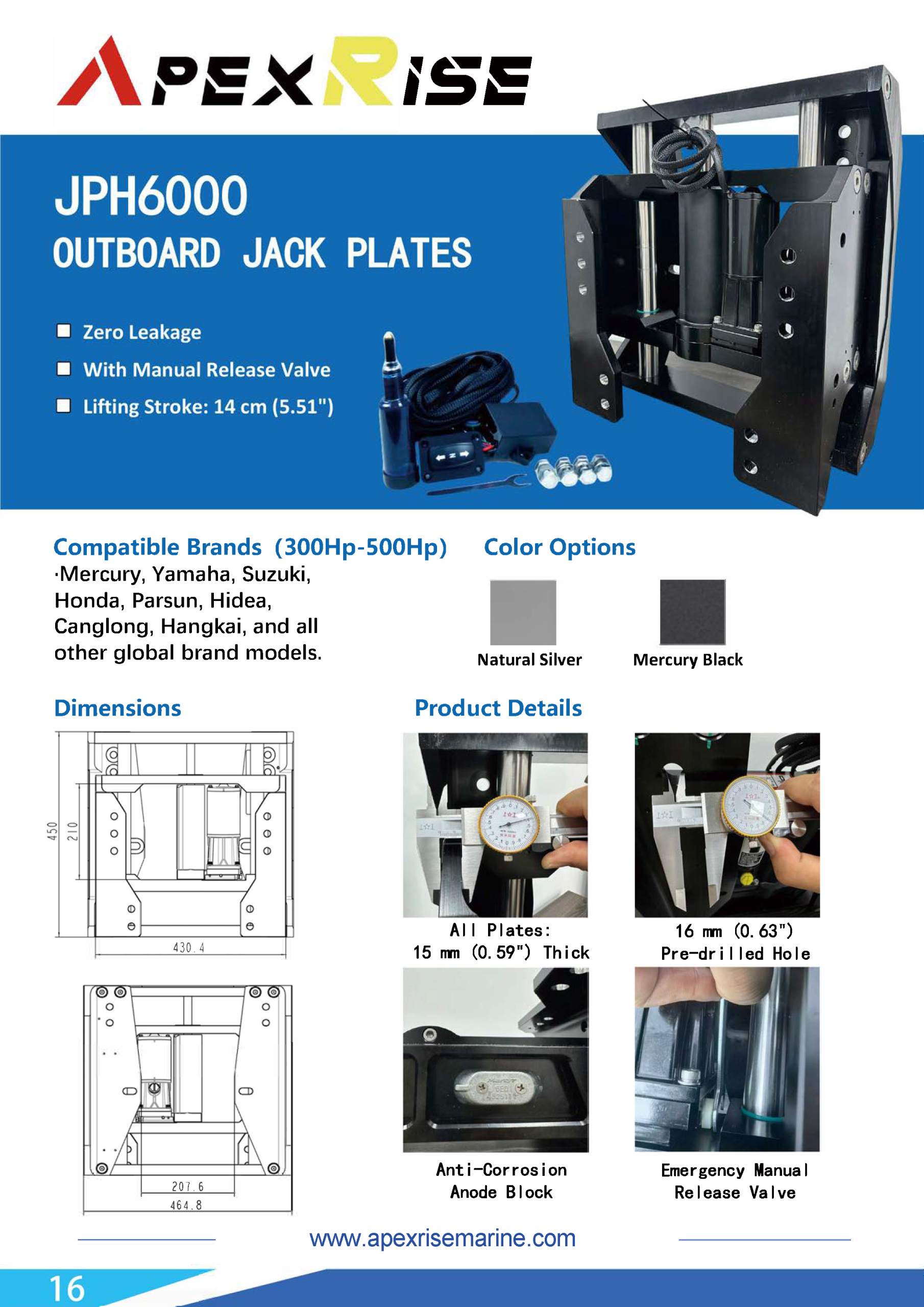

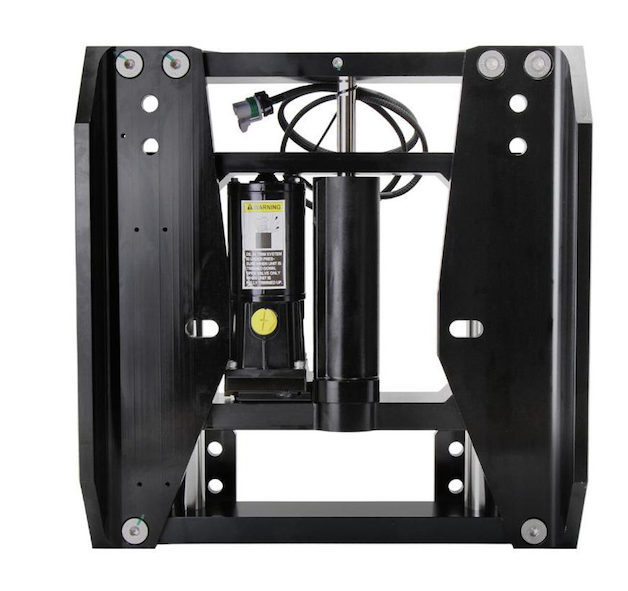

JPH6000
Extreme‑Duty Hydraulic Jack Plate for 600 HP Outboards
The JPH6000 is engineered for the largest, heaviest outboards on the water — up to 600 HP. Built from ultra‑resilient 7009 aviation aluminum, it delivers exceptional strength, long service life, and reliable hydraulic lift under extreme loads.
5400/Manual

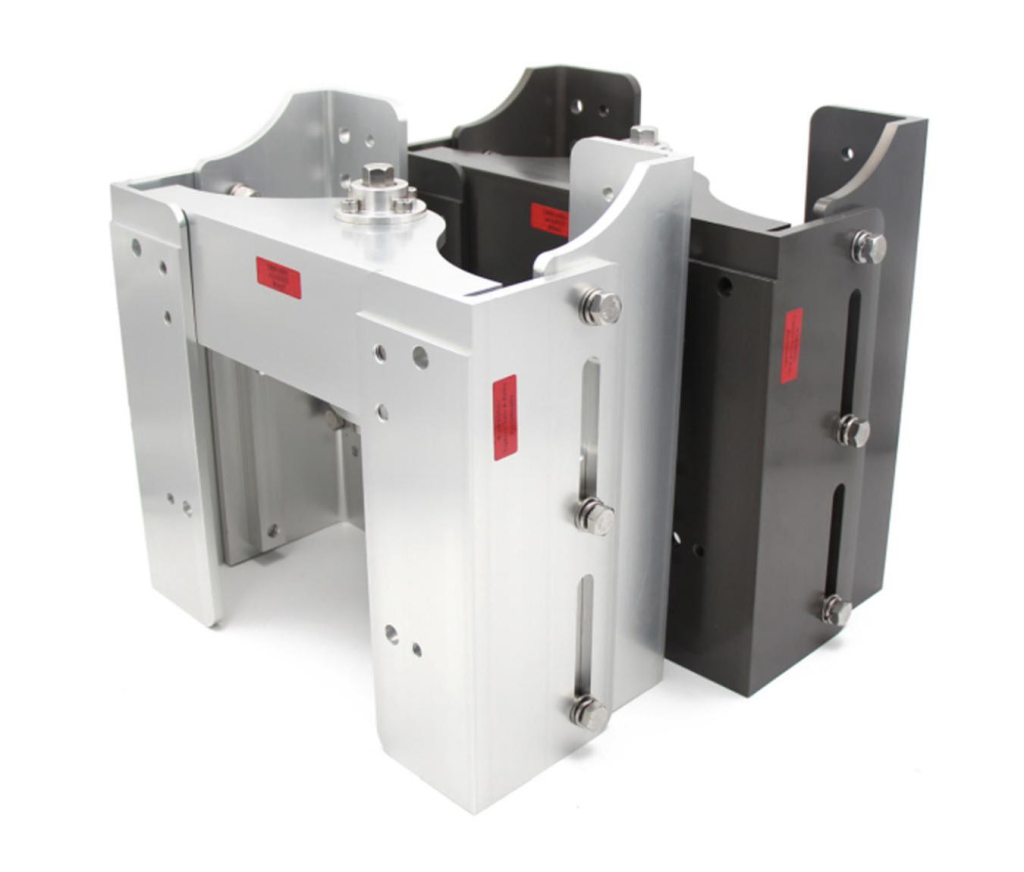

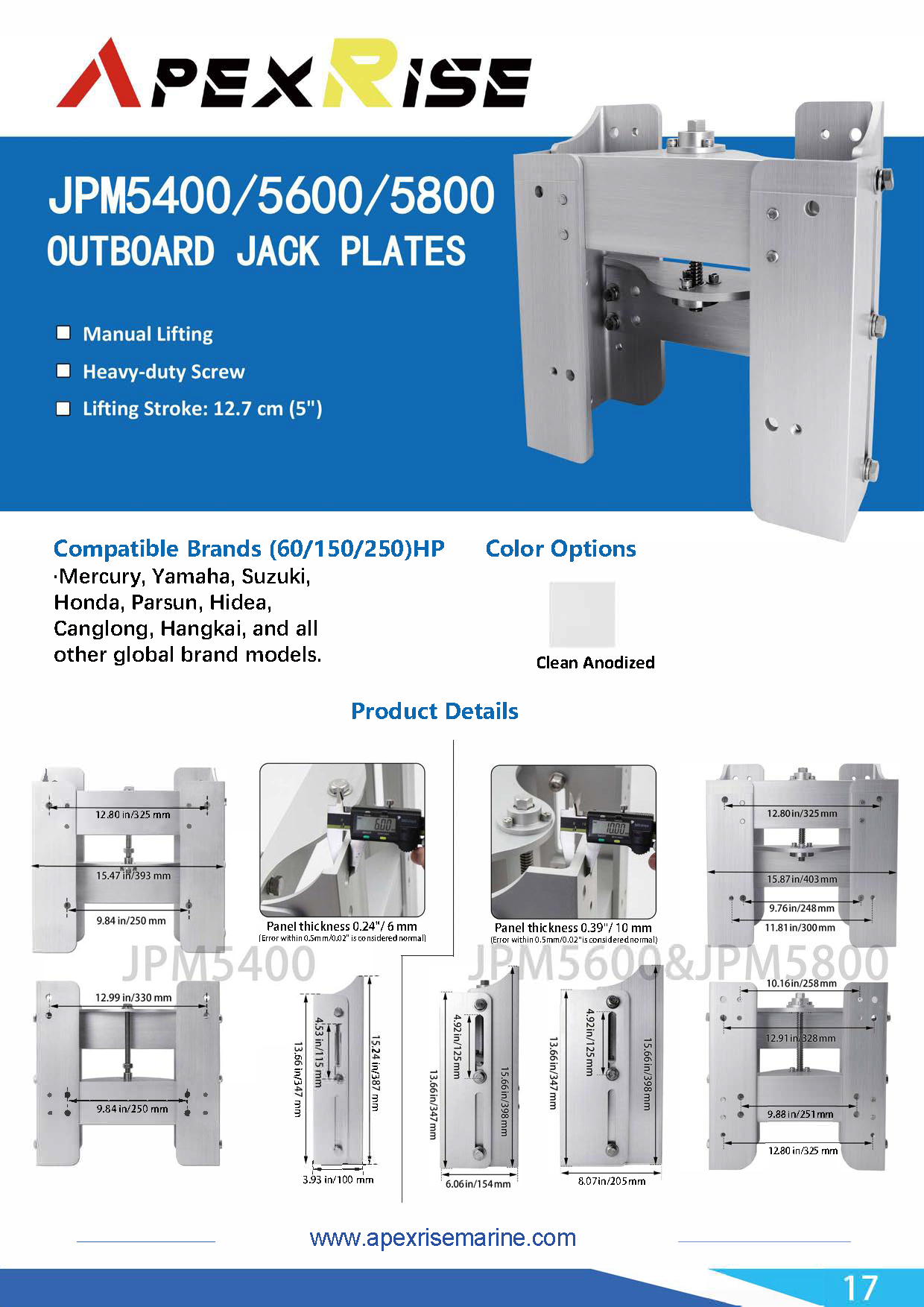

JPM54/56/5800
Manual Jack Plate — Simple, Strong, and Built for Pure Mechanical Control
The ApexRise Manual Jack Plate delivers reliable, no‑nonsense engine height adjustment for small to mid‑size outboards. Built from aircraft‑grade aluminum with bronze and brass hardware, it provides smooth mechanical lift without binding — perfect for skiffs, jon boats, flats boats, and lightweight performance hulls.
The ApexRise™ Jack Plate Advantage
If you’re searching for a manual or hydraulic jack plate, outboard lift system, or a 150 HP jack plate engineered for real‑world performance, ApexRise™ delivers unmatched strength, precision, and reliability. Designed for outboards up to 150 horsepower, our jack plates provide smooth vertical travel, optimized engine height, and the ability to run in shallower water without sacrificing thrust or control.
Optimized for Performance
ApexRise™ Jack Plates are engineered to reduce drag, improve fuel efficiency, and give your prop cleaner water at every speed. Whether you’re running flats, navigating tight channels, or pushing for maximum top‑end, our hydraulic system gives you instant, precise control of your engine height.
Built for Modern Outboards
Our Jack Plates are compatible with all major outboard brands and mounting patterns. With a compact footprint and rigid vertical bracket design, ApexRise ensures zero flex under load—even in rough water or high‑torque conditions.
Why Boaters Choose ApexRise™
- Smooth, responsive manual and hydraulic lift
- Ultra‑rigid structure for maximum stability
- Corrosion‑resistant construction with integrated anode pocket
- Installer‑friendly wiring harness and rocker switch
- Designed for 10 HP – 500 HP outboards
- Engineered for shallow‑water performance and high‑speed stability
If you want a marine outboard Jack Plate that improves speed, control, and efficiency, ApexRise™ is the upgrade your boat deserves.
📐 Technical Specifications
Engine Compatibility
- Rated for: 10 HP–500 HP outboards
- Mounting pattern: Standard outboard bolt pattern
- Maximum setback configurations: 6‑bolt recommended for 10″+ setbacks or 60+ HP
Construction & Materials
- High‑strength vertical bracket assembly
- Corrosion‑resistant aluminum alloy
- Integrated anode pocket
- Size: 2.45″ × 0.98″
- Hole spec: 1/4″-28 UNF
- Depth: 0.55″
Hydraulic System
- Smooth, controlled vertical travel
- Reliable relay‑controlled hydraulic actuator
- 12V operation
- Voltage requirement: 10.5–14V at actuator leads
- Includes rocker switch and relay wiring harness
Mounting Hardware Requirements
- Use engine‑manufacturer‑approved stainless hardware
- For outboards over 60 HP: 6 mounting bolts recommended
- Bolt spec for engine side: M10×35 GB bolts
- Torque values: Follow engine manufacturer recommendations
Clearance & Safety
- Full steering travel must be verified at all trim positions
- No interference with steering cylinders, hoses, or rigging
- Jack plate provides 2.5″ lift offset at lowest position
- Includes lubrication points with grease‑gun refill system
Maintenance
- Inspect every 100 hours or 6 months
- Fresh‑water rinse after each use
- Check bolts, seals, wiring, and actuator for wear
- Lubricate via integrated grease fittings
Warranty
- 2‑Year Warranty on any material or workmanship defects
