Precision Control
ApexRise™ Power Trim Assemblies — Built for Performance
Power Trim Assemblies from ApexRise™ Marine deliver smooth, controlled trim adjustment for outboard steering systems. Engineered for consistent hydraulic response, corrosion resistance, and long‑term reliability, our trim units help boaters maintain optimal running angle, improve handling, and maximize performance across changing water conditions. Precision built for boaters who demand precise control and dependable performance from their steering systems, each unit is engineered with high‑strength materials, tight hydraulic tolerances, and marine‑grade corrosion protection to ensure smooth trim operation in saltwater and freshwater environments.
Whether you’re improving hole shot, stabilizing your ride in rough water, or dialing in the perfect running angle for speed and efficiency, ApexRise power trim assemblies deliver consistent lift and responsive steering feel. Designed for compatibility with a wide range of outboards, our trim systems integrate cleanly with existing rigging and are built for long‑term durability with minimal maintenance.
Feature Highlights of Our Power Trims
- Smooth Hydraulic Response for precise trim control at any speed
- Corrosion‑Resistant Construction built for harsh marine environments
- Improved Handling & Stability through optimized running angle
- Enhanced Hole Shot & Efficiency with controlled lift and trim
- OEM‑Level Fit & Compatibility for a wide range of outboard platforms
- Low‑Maintenance Design engineered for long service life
Rise above ordinary. Run ApexRise™.
Hydraulic

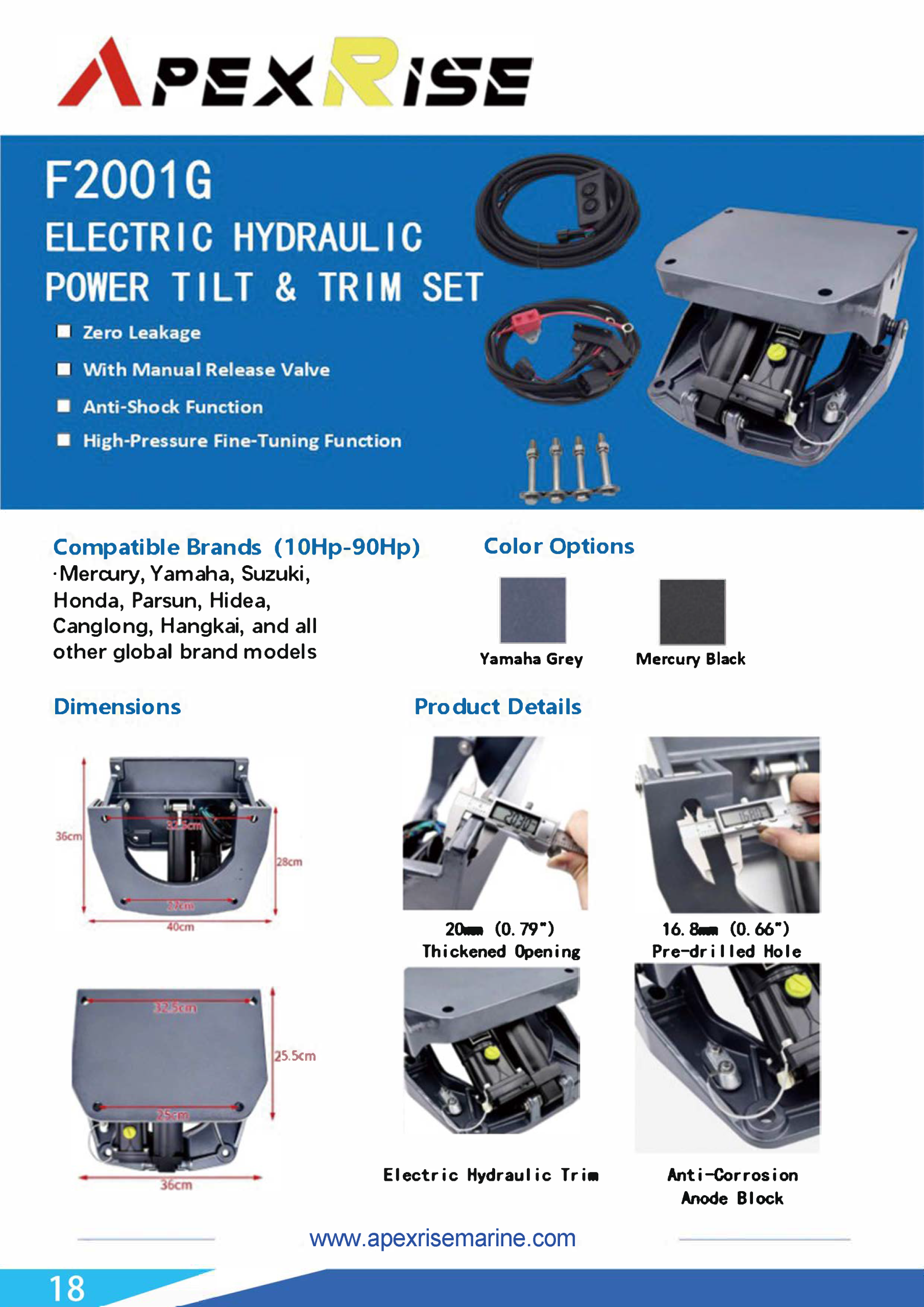

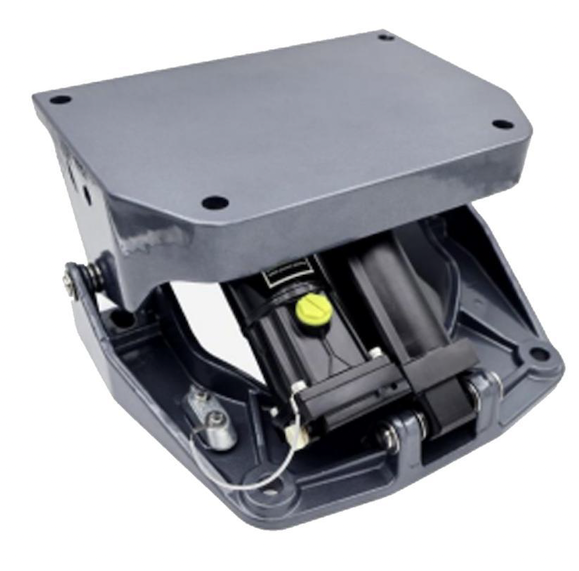

F2001G
Electric Hydraulic Power Trim & Tilt
Precision Control & Impact Protection. This tilt & trim system provides smooth, no leak electro‑hydraulic adjustment with built‑in impact disengagement to protect your outboard. Equipped with a genuine Mercury motor and IP68 waterproofing, it’s built for reliability in harsh marine environments.
Compatible Brands (10Hp-90Hp)
Mercury, Yamaha, Suzuki, Honda, Parsun, Hidea, Canglong, Hangkai, and all other global brand models
Electro-Hydraulic
F4001A
Power Trim Assembly
OEM‑Grade Trim Performance for Yamaha 20HP–45HP
The ApexRise F4001A is engineered as a direct replacement for Yamaha 2‑stroke and 4‑stroke mid‑range engines. With a rugged IP67 ingress rating and a 2T–2.5T trim force range, it delivers dependable performance in demanding marine environments.
Compatible Engines
- Yamaha 2‑Stroke: 25HP–40HP
- Yamaha 4‑Stroke: 20HP–45HP (“·Yamaha 2 – Stroke, 25HP – 40HP… Yamaha 4-Stroke, 20HP – 45HP”)
OEM Replacement Numbers
(Cited from catalog list) 65W‑43800‑01‑4D / 65W‑43800‑02‑4D / 65W‑43800‑03‑4D / 65W‑43800‑20‑4D 65W‑43800‑21‑4D / 65W‑43800‑22‑8D / 65W‑43800‑23‑8D / 65W‑43800‑24‑8D 67C‑43800‑00‑4D / 67C‑43800‑01‑4D / 67C‑43800‑10‑8D / 67C‑43800‑11‑8D 67C‑43800‑12‑8D / 67C‑43800‑13‑8D
Key Features
- Zero Leakage Hydraulic System
- Manual Relief Valve (“With Manual Relief Valve”)
- Anti‑Shock Protection
- High‑Pressure Fine‑Tuning
- IP67 Waterproof Rating
- Anti‑Beaching Protection
Hydraulic

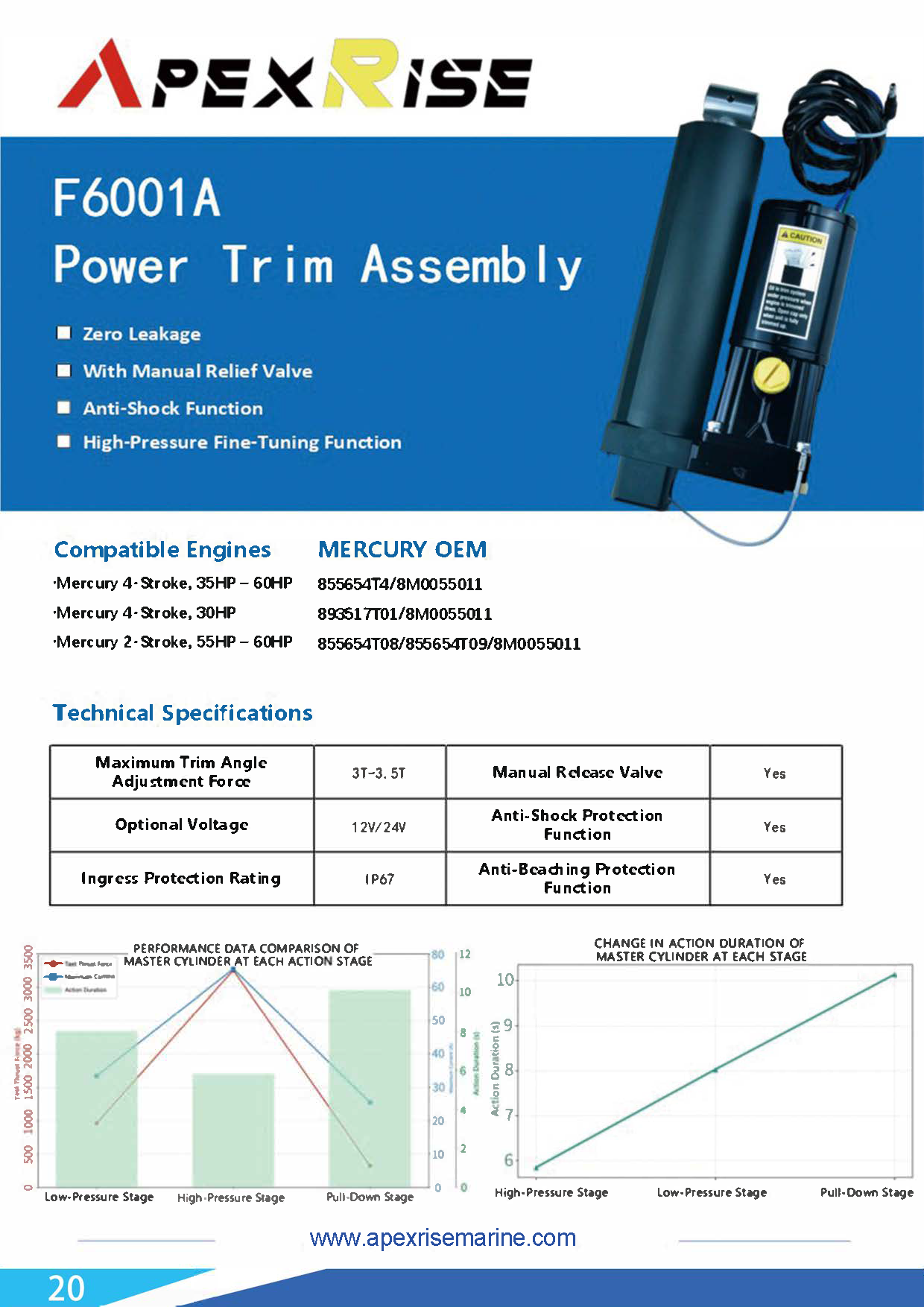

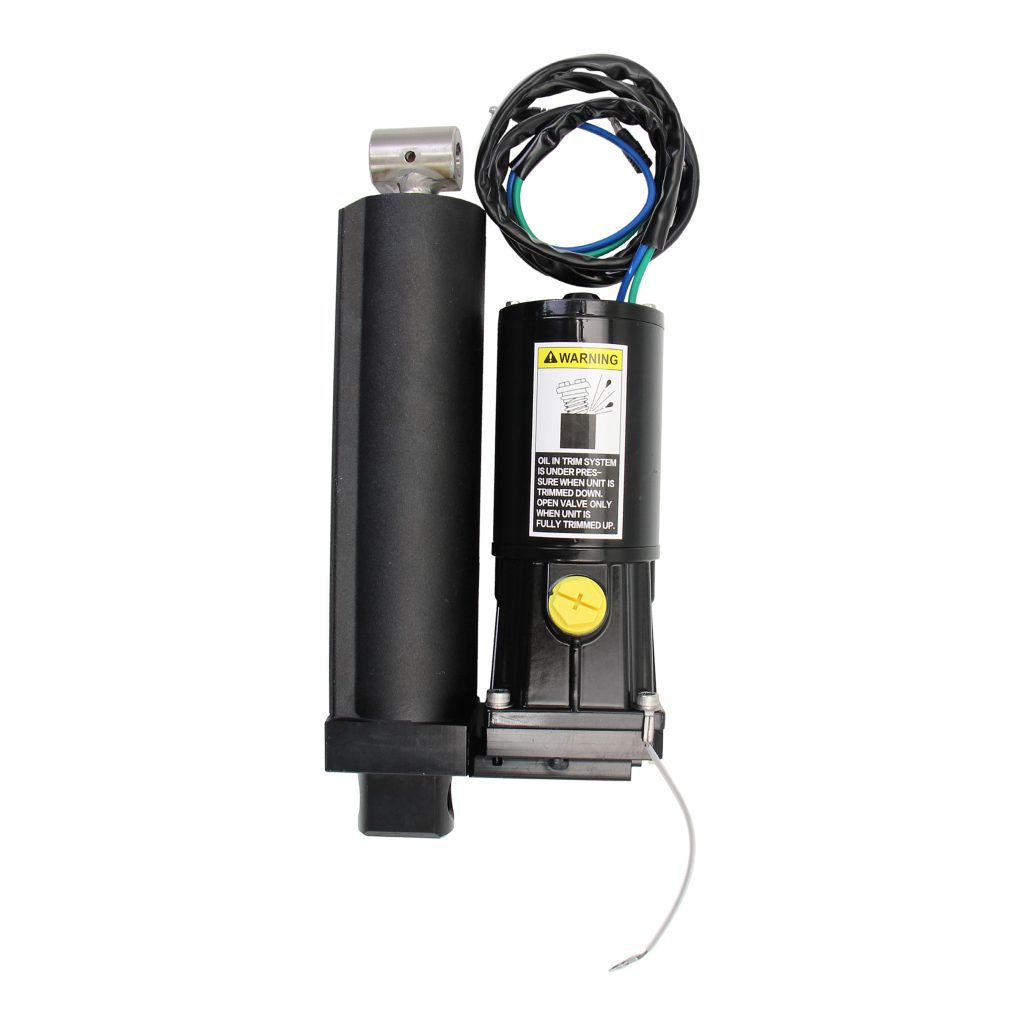

F6001A
Power Trim Assembly
Mercury 30HP–60HP Replacement with 3T–3.5T Trim Force
Designed for Mercury mid‑range engines, the F6001A delivers powerful trim performance with a rugged hydraulic system and IP67 protection. Ideal for anglers, commercial operators, and recreational boaters who demand OEM‑level reliability.
Compatible Brands
-
Mercury 4‑Stroke: 35HP–60HP
-
Mercury 4‑Stroke: 30HP
-
Mercury 2‑Stroke: 55HP–60HP (“·Mercury 4-Stroke, 35HP – 60HP… Mercury 2-Stroke, 55HP – 60HP”)
OEM Replacement Numbers
855654T4 / 893517T01 / 855654T08 / 855654T09 / 8M0055011
Electro-Hydraulic

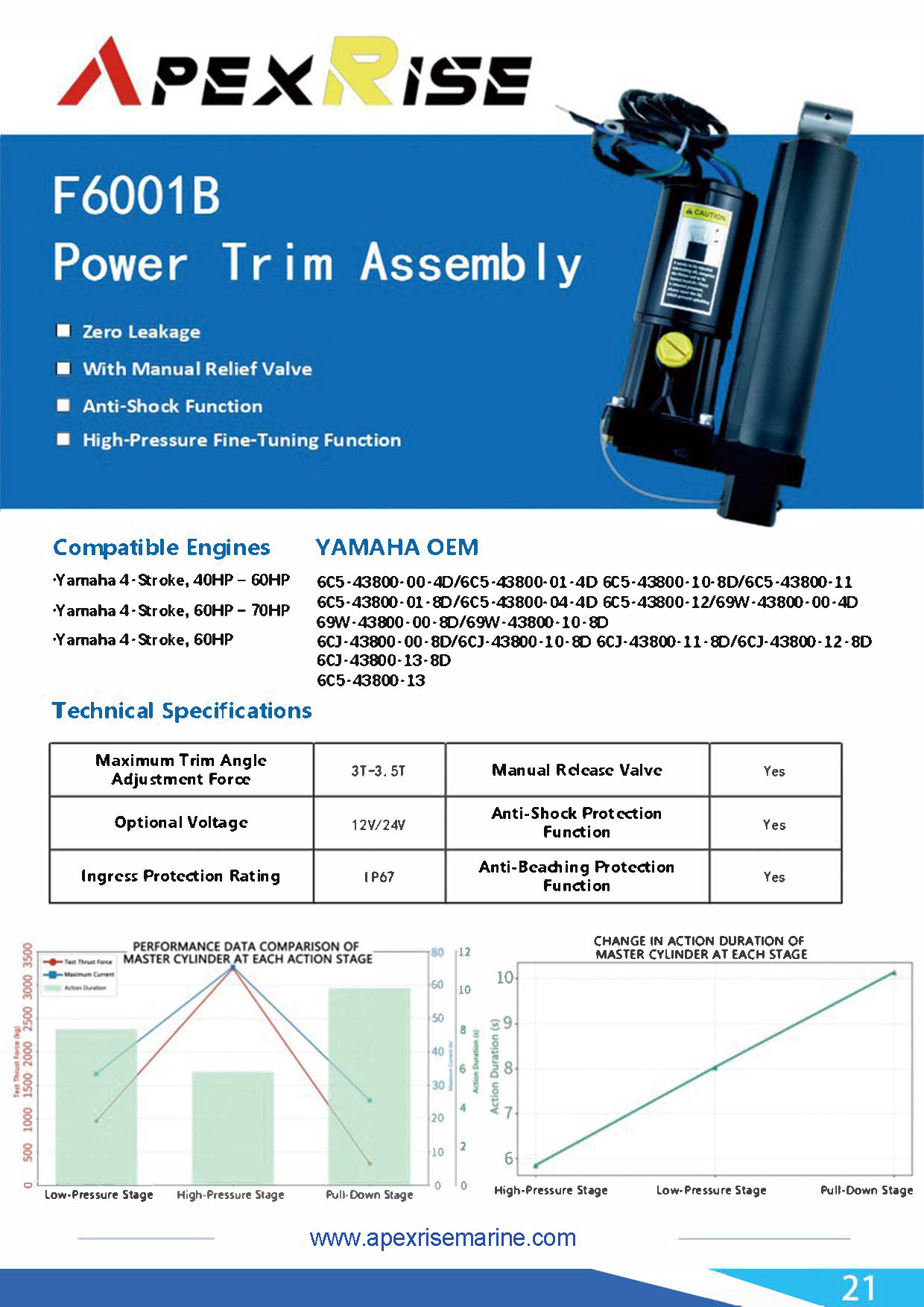

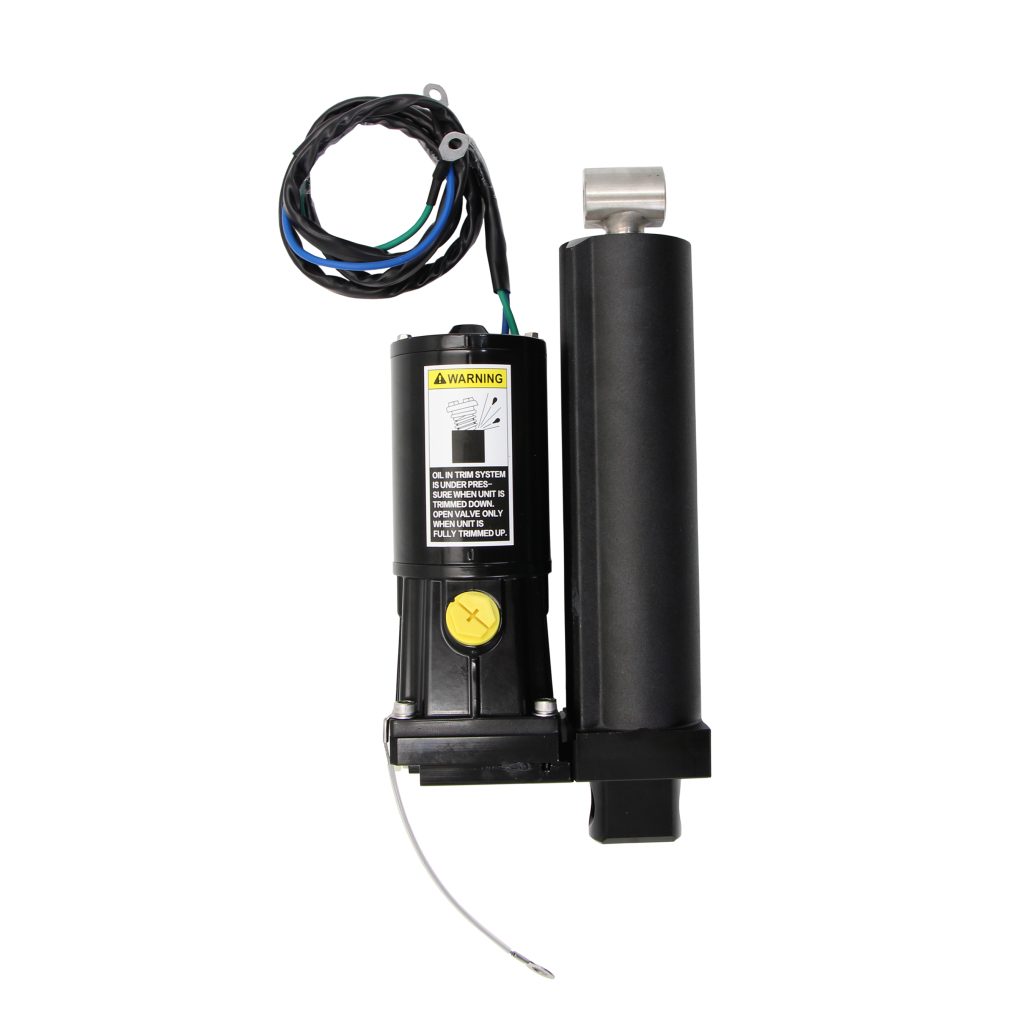

F6001B
Power Trim Assembly
High‑Output Trim System for Yamaha 40HP–70HP
The F6001B is built for Yamaha 40–70HP 4‑stroke engines, offering a robust 3T–3.5T trim force and a fully sealed IP67 hydraulic system. Perfect for repowers, upgrades, and OEM replacement.
Compatible Engines
-
Yamaha 4‑Stroke: 40HP–60HP
-
Yamaha 4‑Stroke: 60HP–70HP (“·Yamaha 4-Stroke, 40HP – 60HP… 60HP – 70HP”)
OEM Replacement Numbers
6C5‑43800‑00‑4D / 6C5‑43800‑01‑4D / 6C5‑43800‑10‑8D / 6C5‑43800‑11 69W‑43800‑00‑4D / 69W‑43800‑10‑8D 6CJ‑43800‑00‑8D / 6CJ‑43800‑10‑8D / 6CJ‑43800‑11‑8D / 6CJ‑43800‑12‑8D / 6CJ‑43800‑13‑8D
Hydraulic

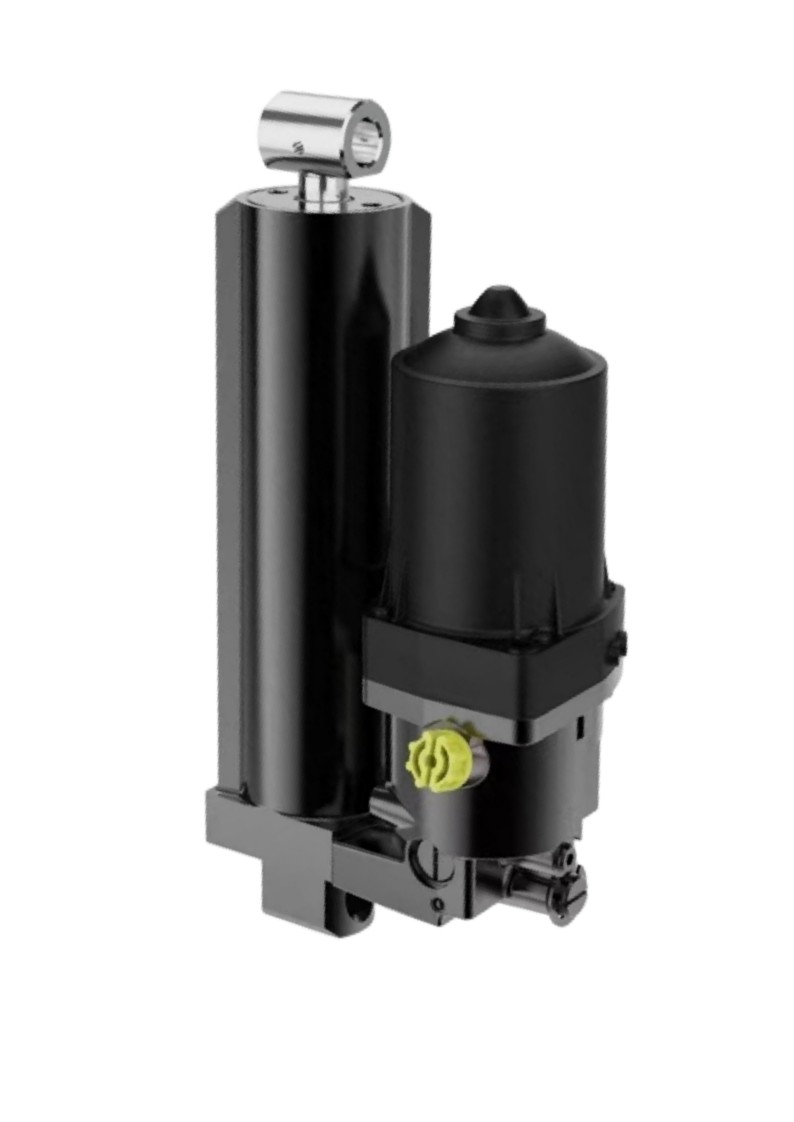

F6001C
Power Trim Assembly
Mercury 40HP–60HP Replacement (Old & New Versions)
The F6001C is engineered to replace both new‑generation and legacy Mercury trim systems. With a 3T–3.5T force rating and high‑pressure fine‑tuning, it delivers consistent performance across all operating conditions.
Compatible Engines
-
Mercury 4‑Stroke: 40HP–60HP (“·Mercury 4- Stroke, 40HP – 60HP”)
OEM Replacement Numbers
-
New Version: 8M0090335 / 8M0171818
-
Old Version: 898447T1 / 830250T5
Electro-Hydraulic

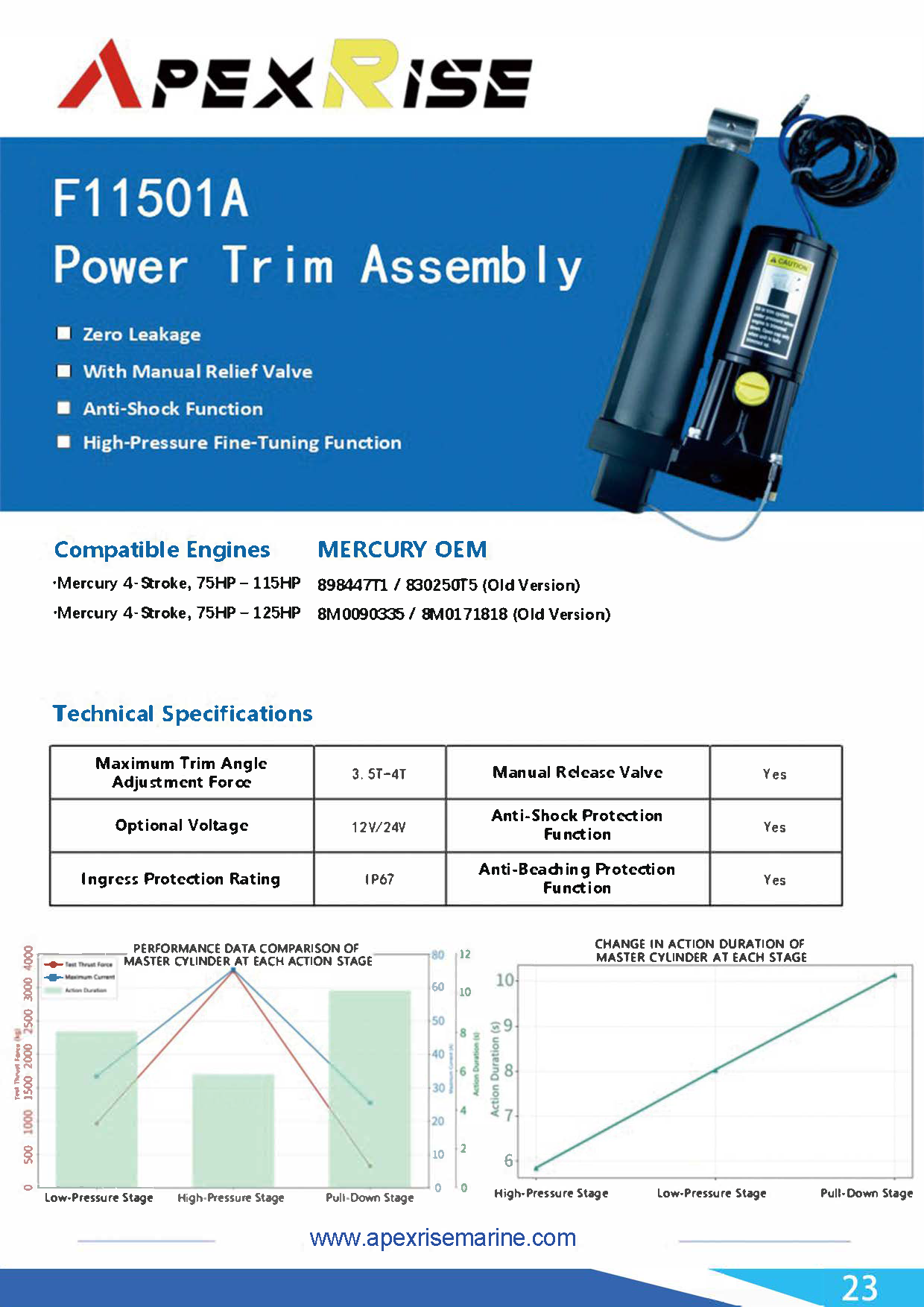

F11501A
Power Trim Assembly
Heavy‑Duty Trim System for Mercury 75HP–125HP
The ApexRise F11501A is built for larger Mercury outboards, delivering a powerful 3.5T–4T trim force. With a reinforced hydraulic system and IP67 sealing, it’s ideal for offshore, commercial, and high‑demand applications.
Compatible Engines
-
Mercury 4‑Stroke: 75HP–115HP
-
Mercury 4‑Stroke: 75HP–125HP (“·Mercury 4-Stroke, 75HP – 115HP… 75HP – 125HP”)
OEM Replacement Numbers
898447T1 / 830250T5 (Old Version) 8M0090335 / 8M0171818 (Old Version)
The ApexRise™ Power Trim Advantage
Every trim unit in the ApexRise™ lineup is built around the same core principles:
Unmatched Hydraulic Integrity
Our zero‑leakage hydraulic architecture ensures consistent pressure, stable trim response, and long‑term reliability — even under heavy load or continuous cycling.
High‑Pressure Fine‑Tuning
ApexRise trim systems use a multi‑stage hydraulic profile that delivers smooth low‑pressure lift, powerful high‑pressure thrust, and controlled pull‑down performance for precise engine angle control.
Protection for Your Engine & Transom
Anti‑Shock and Anti‑Beaching functions safeguard your outboard from sudden impacts, grounding, and unexpected load spikes — extending the life of your engine and mounting hardware.
Marine‑Grade Construction
From corrosion‑resistant housings to sacrificial anode blocks, every component is engineered for saltwater and freshwater environments.
OEM Compatibility, ApexRise Reliability
Each model is built to match OEM fitment, mounting patterns, and electrical requirements — making ApexRise the trusted upgrade or replacement for Mercury, Yamaha, Suzuki, Honda, and more.
IP67 Waterproofing
Fully sealed against water intrusion, ensuring dependable operation in rain, spray, washdowns, and full‑day marine exposure
Built for Installers. Loved by Boaters.
Pre‑drilled mounting points, reinforced openings, and clean wiring integration make ApexRise trims fast to install and easy to service.
📐 Technical Specifications
Engineered for Precision. Built for the Sea. Trusted by Professionals.
F4001A
- Maximum Trim Angle Adjustment Force: 2T–2.5T
- Voltage Options: 12V / 24V
- IP Rating: IP67
- Manual Release Valve: Yes
- Anti‑Shock Protection: Yes
- Anti‑Beaching Protection: Yes
F6001A
- Maximum Trim Angle Adjustment Force: 3T–3.5T
- Voltage Options: 12V / 24V
- IP Rating: IP67
- Manual Release Valve: Yes
- Anti‑Shock Protection: Yes
- Anti‑Beaching Protection: Yes
F6001B
- Maximum Trim Angle Adjustment Force: 3T–3.5T
- Voltage Options: 12V / 24V
- IP Rating: IP67
- Manual Release Valve: Yes
- Anti‑Shock Protection: Yes
- Anti‑Beaching Protection: Yes
F6001C
- Maximum Trim Angle Adjustment Force: 3T–3.5T
- Voltage Options: 12V / 24V
- IP Rating: IP67
- Manual Release Valve: Yes
- Anti‑Shock Protection: Yes
- Anti‑Beaching Protection: Yes
F11501A
- Maximum Trim Angle Adjustment Force: 3.5T–4T
- Voltage Options: 12V / 24V
- IP Rating: IP67
- Manual Release Valve: Yes
- Anti‑Shock Protection: Yes
- Anti‑Beaching Protection: Yes
